| Type: |

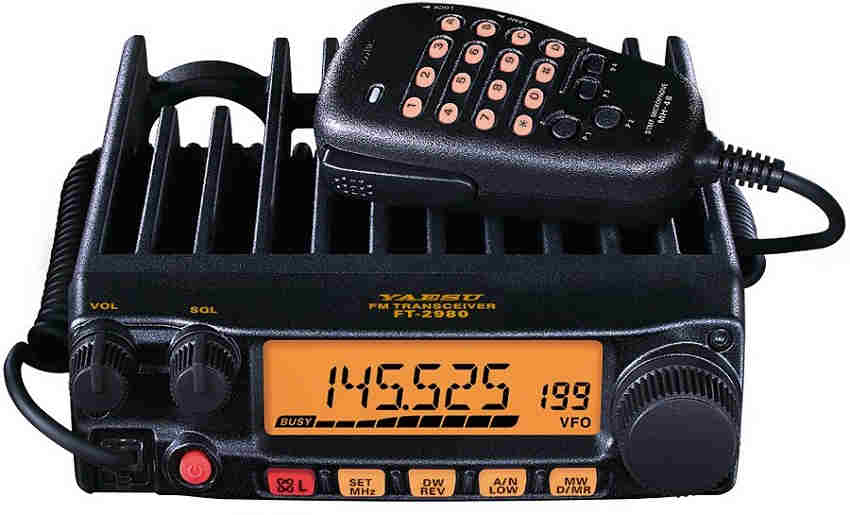

Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz (Europe)
TX: 144-148 MHz (USA)
RX: 136-174 MHz |
| Modes: |
FM/NFM |
| RF Power output: |
Hi: 80 W
Mid: 30 W
Lo2: 10 W
Lo1: 5 W |
| Frequency Steps: |
5/10/12.5/15/20/25/50/100 KHz |
| Memories: |
200 Regular with Alpha Tags
1 home
10 scan edge pairs (PMS)
Non-volatile EEPROM storage |
| epeater shift / offset: |
±600 KHz (Programmable in 50 KHz Steps) |
| Voltage: |
13.8 VDC ±15% ("T" connector on Pigtail) |
| Current Drain: |
RX: 0.3-0.7 A
TX: Max 15 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
160 x 50 x 185 mm (6.3 x 2 x 7.3 inches) |
| Weight: |
1.9 Kg (4.2 lbs) |
| Manufactured: |
Japan: 2017-20xx |
| Other: |
CTCSS/PL and DCS with Tone Dearch. DTMF. ARTS. Dimmer. |
| Related Documents: |
User Manual (2.6 MB)
|
