| Type: |

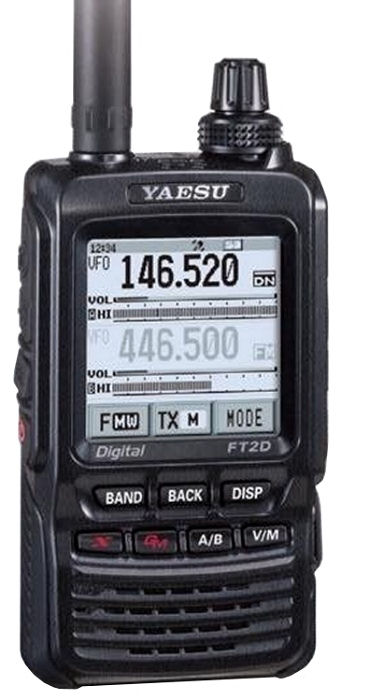

Amateur VHF Transceiver |
| Frequency Range: |
144-148 /430-450 MHz
RX: 0.52-999 MHz (Cellular Blocked in USA) |
| Modes: |
TX: FM/NFM/DV (C4FM FDMA, 9.6 Kbps)
RX: AM/FM/NFM/ WFM/DV (C4FM FDMA, 9.6 Kbps) |
| RF Power output: |
2 m: 5/2.5/0.8-1/0.5 W
70 cm: 5/2.5/0.8-1/0.1 W |
| Memories: |
900 Regular
50 Pairs of PMS
99 Skip Search
146 Presets, including Broadcast and VHF Marine Channels
Alpha Tagging
Non-Volatile EEPROM Storage |
| Voltage: |
Internal: 7.2-7.4 VDC (Battery Packs)
External: 4-14 VDC |
| Current Drain: |
RX: 50-180 mA (+20 mA GPS on) (+20 mA Digital on)
TX: Max 1.8 A |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
62 x 110 x 32 mm (2.44 x 4.33 x 1.26 inches), With SBR-14LI & No Antenna |
| Weight: |
310 g (10.9 oz), with SBR-14LI & Antenna |
| Manufactured: |
Japan: 2015-201x (Discontinued) |
| Other: |
|
| Related Documents: |
User Manual (39 MB)
Service Manual (17 MB)
APRS Manual (23.5 MB)
GM Manual (7.1 MB)
Wires-X Manual (10.2 MB)
TX-Mod (TX Frequency Expansion Mod) (7.5 kb)
|
