| Type: |

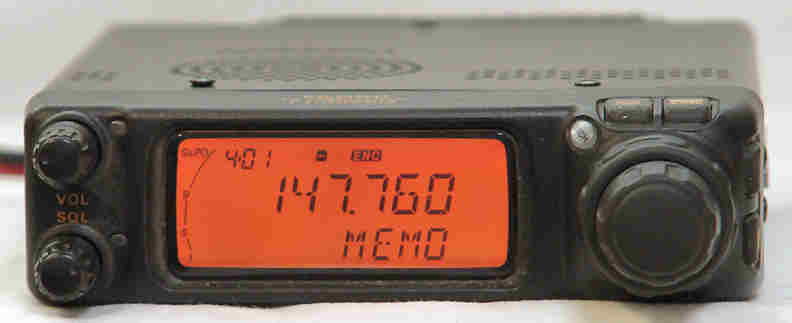

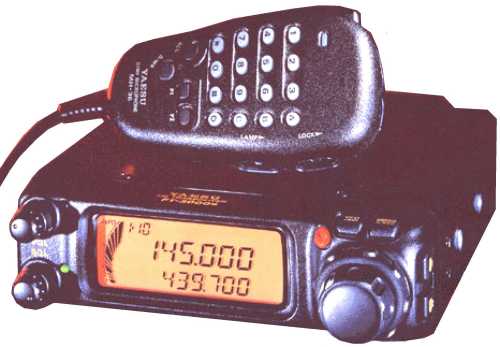

Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz (Europe)
TX: 144-148 MHz (USA)
RX: 110-180 / 300-520 / 800-999 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 70 W
Mid1: 50 W
Mid2: 25 W
Lo: 10 W |
| Sensitivity: |
Main: 0.2 uV (12 dB SINAD)
Sub: 0.25 uV (12 dB SINAD) |
| Selectivity: |
15 KHz (-6 dB), 28 KHz (-60 dB) |
| Image rejection: |
>70 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.5-0.8 A
TX: Max 15 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*40*180 mm |
| Weight: |
1.25 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
81 memories. DCS & ARTS. 9K6 packet ready. Twin RX |
