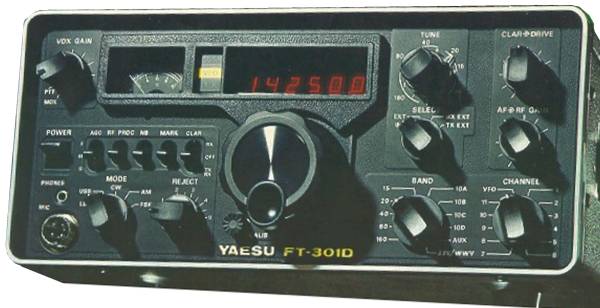

Yaesu FT-301D
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-160 m |
| Modes: |
AM/SSB/CW |
| RF Power output: |
SSB/CW: 100 W
AM: 25 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.5 VDC |
| Current Drain: |
RX: Max 1.1 A
TX: Max 21 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
280*125*370 mm |
| Weight: |
9 Kg |
| Manufactured: |
197x-19xx |
| Other: |
Digital readout |
| Related Documents: |
User Manual (3.84 MB) |
|
