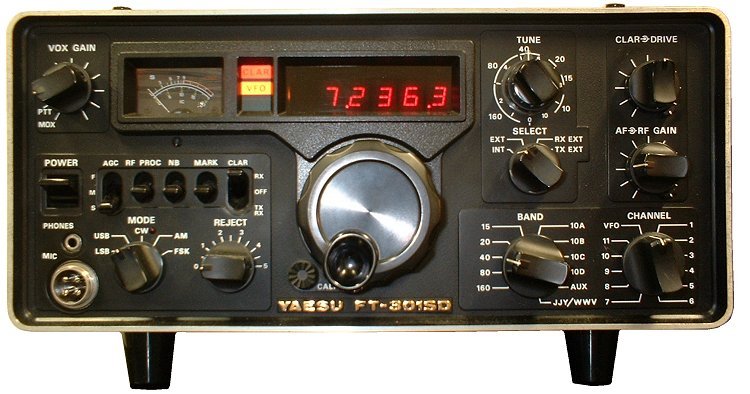

Yaesu FT-301SD
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-160 m |
| Modes: |
AM/SSB/CW/FSK |
| RF Power output: |
10 W |
| Sensitivity: |
0.25 uV (10 dB S/N) |
| Selectivity: |
AM: 6 KHz (-6 dB), 12 KHz (-60 dB)
SSB: 2.4 KHz (-6 dB), 4 KHz (-60 dB)
CW/FSK: 600 Hz (-6 dB), 1.2 KHz (-60 dB) |
| Image rejection: |
15-160 m: Better than 60 dB
10 m: Better than 50 dB |
| Voltage: |
13.5 VDC |
| Current Drain: |
RX: ? A
TX: Max 2 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
280*125*370 mm |
| Weight: |
9 Kg |
| Manufactured: |
197x-19xx |
| Other: |
|
| Related Documents: |
User Manual (3.84 MB) |
|
