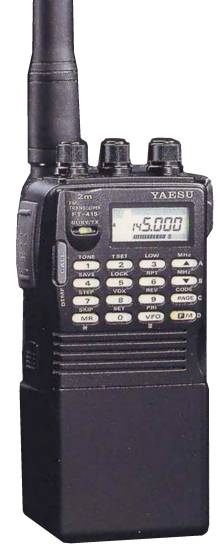

| Type: | Amateur VHF Transceiver |
| Frequency Range: | TX: 144-146 MHz (Europe) TX: 144-148 MHz (USA) RX: 130-174 MHz |
| Modes: | FM |
| RF Power output: | Hi: 5 W Lo3: 3 W Lo2: 1.5 W Lo1: 0.5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 5.5-16 VDC |
| Current Drain: | RX: 8-190 mA TX: Max 1.5 A |
| Aerial Input: | 50 ohms, BNC |
| Dimensions (W*H*D): | 55*146*33 mm (with FNB-27) |
| Weight: | 430 g (with FNB-27) |
| Manufactured: | 19xx-19xx |
| Other: | |
