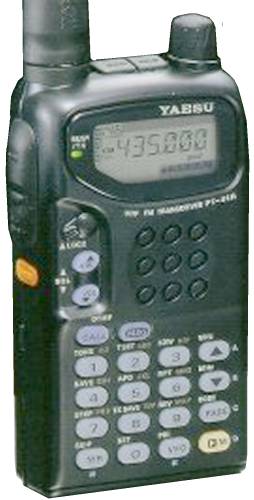

| Type: | Amateur UHF Transceiver |
| Frequency Range: | 430-440 MHz (Europe) 430-450 MHz (USA) |
| Modes: | FM |
| RF Power output: | Hi: 4.5 W Lo3: 2 W Lo2: 1 W Lo1: 200 mW |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 4-12 VDC |
| Current Drain: | RX: Max 15-120 mA TX: Max 1.2 A |
| Aerial Input: | 50 ohms |
| Dimensions (W*H*D): | 57*102*26 mm (with FNB-31) |
| Weight: | 280 gr (with FNB-31) |
| Manufactured: | 1993-19xx |
| Other: | |
| Related Documents: |
