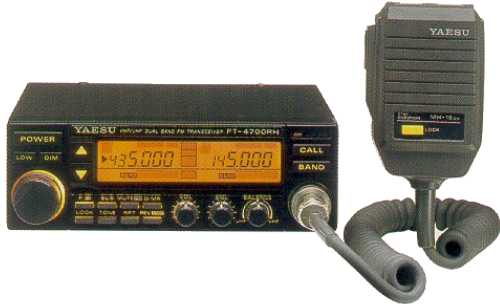

Yaesu FT-4700RH
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA)
5/10/12.5/20/25 KHz steps |
| Modes: |
FM |
| RF Power output: |
Hi: 50/40 W
Lo: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.6 A
TX: Max 10 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
150*50*180 mm |
| Weight: |
2.0 Kg |
| Manufactured: |
1989-19xx |
| Other: |
Detachable front panel. Twin RX |
