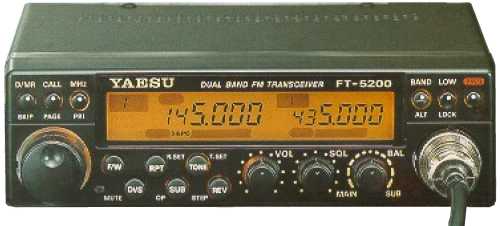

Yaesu FT-5200
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz (Europe)
144-148 / 430-450 MHz (USA)
5/10/12.5/15/20/25 KHz steps |
| Modes: |
FM |
| RF Power output: |
Hi: 50/35 W
Lo: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.6 A
TX: Max 11.5 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140*40*155 mm |
| Weight: |
1.0 Kg |
| Manufactured: |
199x-199x |
| Other: |
800 memories. Twin RX |
| Related Documents: |
|
|
