| Back to Yaesu Next Yaesu |

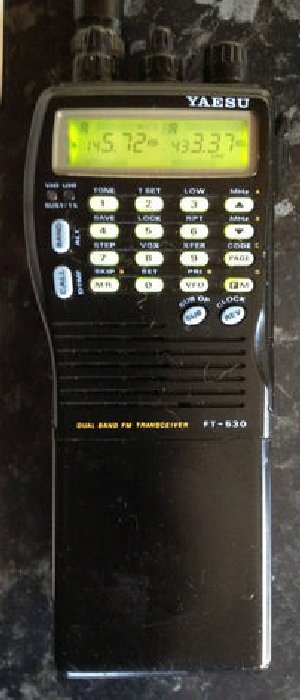

| Type: | Amateur VHF/UHF Transceiver |
| Frequency Range: | TX: 144-146 / 430-440 MHz (Europe and Asia) TX: 144-148 / 430-450 MHz (USA) RX: 110-180 / 300-500 / 800-950 MHz Steps: 5/10/12.5/15/20/25/50 KHz |
| Modes: | FM |
| RF Power output: | Hi: 5/5 W Lo: ?/? mW |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 5.5-16 VDC |
| Current Drain: | RX: 16-190 mA TX: Max 1.6 A |
| Aerial Input: | 50 ohms, BNC |
| Dimensions (W*H*D): | 55*134*33 mm (with FBA-12) |
| Weight: | 530 gr (with FNB-27 and antenna) |
| Manufactured: | 1992-19xx |
| Other: | Twin RX |
| Related Documents: | User Manual (2.98 MB) |
