| Type: |

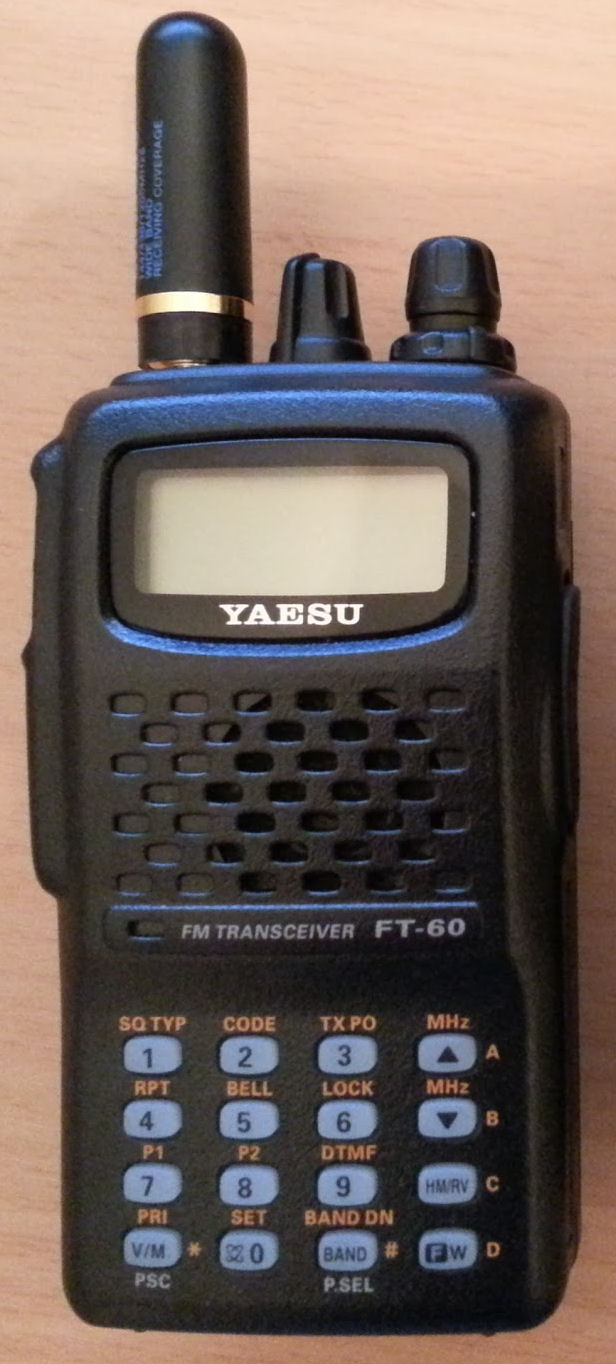

Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz (Europe)
RX: 108-520 / 700-999 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 5/5 W
Mid: 2/2 W
Lo: 0.5/0.5 W |
| Sensitivity: |
0.16 uV (12 dB SINAD - 140-150 MHz)
0.2 uV (12 dB SINAD - 420-470 MHz) |
| Selectivity: |
12 KHz (-6 dB), 35 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
Nominal: 7.2 VDC (battery pack), 6-16 VDC (external) |
| Current Drain: |
RX: 45-125 mA
TX: Max 1.5 A |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*109*30 mm |
| Weight: |
370 gr |
| Manufactured: |
2004-200x |
| Other: |
1000 memories with alpha-tags. CTCSS & DCS. WIRES II. ARTS.
Emergency Automatic ID (EAI). |
| Related Documents: |
User Manual (1.93 MB) |
