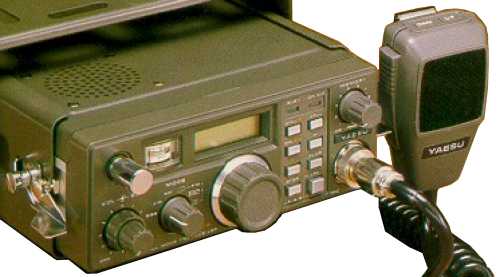

Yaesu FT-690R
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
50-54 MHz |
| Modes: |
FM/SSB/CW |
| RF Power output: |
2.5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
8*C-size or 8.5-15.2 VDC external |
| Current Drain: |
RX: 70 mA
TX: Max 800 mA |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
150*58*195 mm |
| Weight: |
1.3 Kg (without batteries) |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
