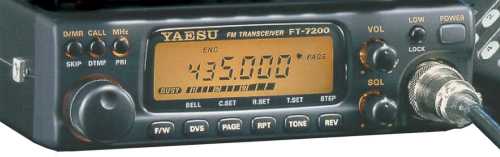

Yaesu FT-7200
| Type: |
Amateur UHF Transceiver |
| Frequency Range: |
430-440 MHz (Europe)
430-450 MHz (USA)
5/10/12.5/15/20/25/50 KHz steps |
| Modes: |
FM |
| RF Power output: |
Hi: 35 W
Mid: 20 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.7 A
TX: Max 10 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
140*40*160 mm |
| Weight: |
1.25 Kg |
| Manufactured: |
1994-19xx |
| Other: |
|
| Related Documents: |
|
|
