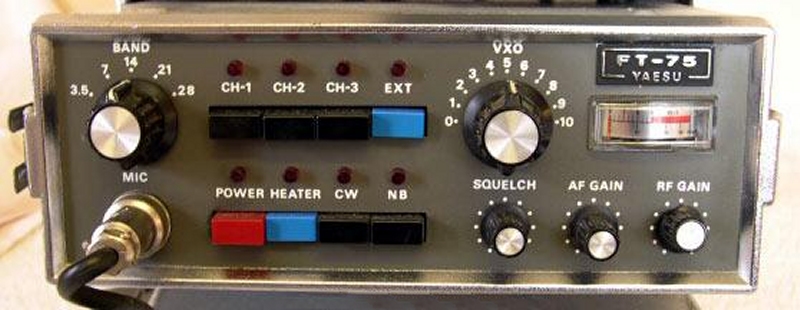

Yaesu FT-75
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-80 m |
| Modes: |
SSB/CW |
| RF Power output: |
20 W (PEP) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains depending on PSU |
| Current Drain: |
RX: Max ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
? mm |
| Weight: |
3.8 Kg |
| Manufactured: |
197x-19xx |
| Other: |
VXO, 3*XTAL/band. Tube final |
| Related Documents: |
|
|
