| Type: |

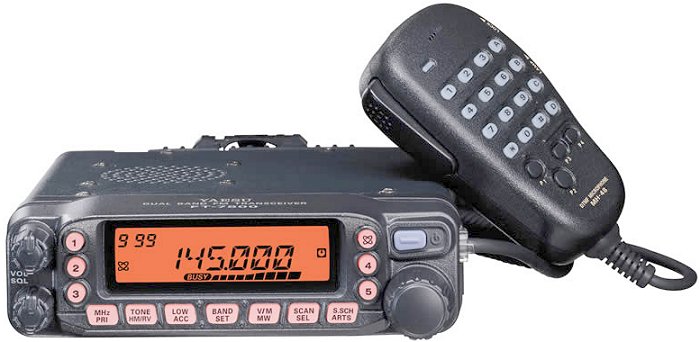

Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz (Europe)
RX: 108-1000 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 50/40 W
Mid1: 20/20 W
Mid2: 10/10 W
Lo: 5/5 W |
| Sensitivity: |
0.16 uV (12 dB SINAD) |
| Selectivity: |
12 KHz (-6 dB), 30 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.5 A
TX: Max 8.5 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140*42*168 mm |
| Weight: |
1 Kg |
| Manufactured: |
2003-200x |
| Other: |
Wires and 1200/9600 baud packet ready.
Detachable front panel. 1000 memories |
| Related Documents: |
|
