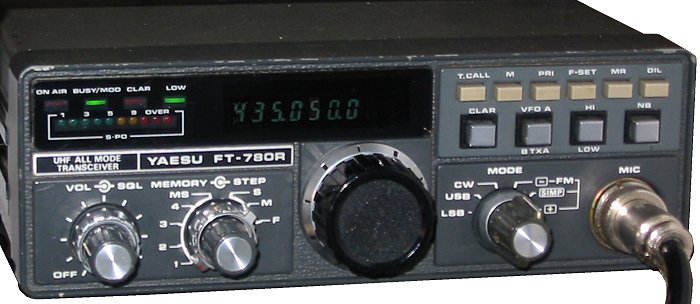

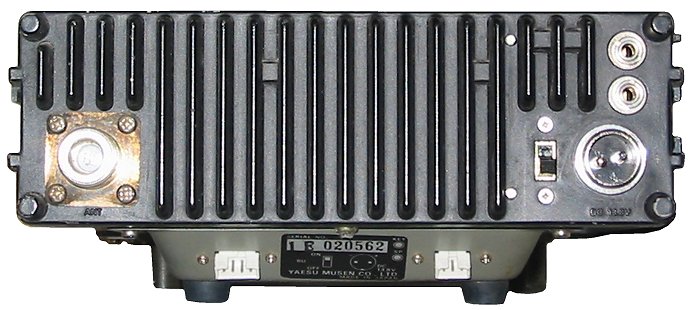

Yaesu FT-780R
| Type: |
Amateur UHF Transceiver |
| Frequency Range: |
430-440 MHz (Europe)
440-450 MHz (USA) |
| Modes: |
FM/SSB/CW |
| RF Power output: |
10 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.5 A
TX: Max 4 A |
| Aerial Input: |
50 ohms, N-type |
| Dimensions (W*H*D): |
180*60*250 mm |
| Weight: |
3.0 Kg |
| Manufactured: |
Japan, 1981-198x |
| Other: |
|
| Related Documents: |
|
 |
