| Type: |

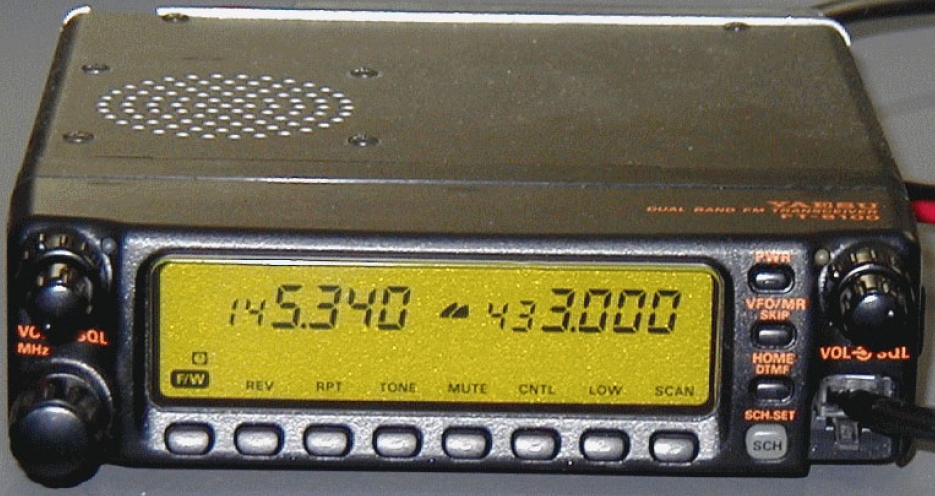

Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 110-550 / 750-1330 MHz |
| Modes: |
FM {F3 (G3E), F2 (1200bps Packet), F1 (9600 bps Packet)} |
| RF Power output: |
Hi: 50/35 W
Mid: 20/20 W
Lo: 5/5 W |
| Sensitivity: |
(12dB SINAD): <0.16uV (VHF), <0.18uV (UHF) for Main Receiver
(12dB SINAD) <0.25uV (Sub Receiver during Dual Receive) |
| Selectivity: |
(-6/-60 dB): 12 kHz/24 kHz |
| Image rejection: |
Better than 0.13uV |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1.0 A
TX: Max 10 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140 x 40 x 165 mm |
| Weight: |
1.0 Kg |
| Manufactured: |
1997-19xx |
| Other: |
Channel Steps: 5/10/12.5/15/20/25/50 kHz
9K6 packet ready. Twin RX |
