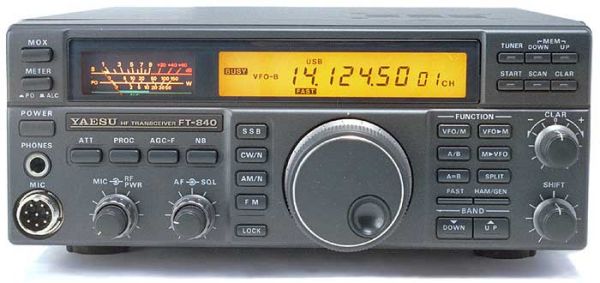

Yaesu FT-840
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz |
| Modes: |
AM/SSB/CW |
| RF Power output: |
SSB/CW: 100 W
AM: 25 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1.4 A
TX: Max 20 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
238*93*243 mm |
| Weight: |
4.5 Kg |
| Manufactured: |
1993-19xx |
| Other: |
FM option
|
