| Type: |
Amateur HF/VHF/UHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC and 60 m / 6 m / 2 m / 70 cm
RX: 0.1-76 / 108-174 / 420-512 MHz |
| Modes: |
AM/FM/SSB/CW and WFM (RX only) |
| RF Power output: |
6-160 m: 100 W
2 m: 50 W
70 cm: 20 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.6-1 A
TX: Max 22 A |

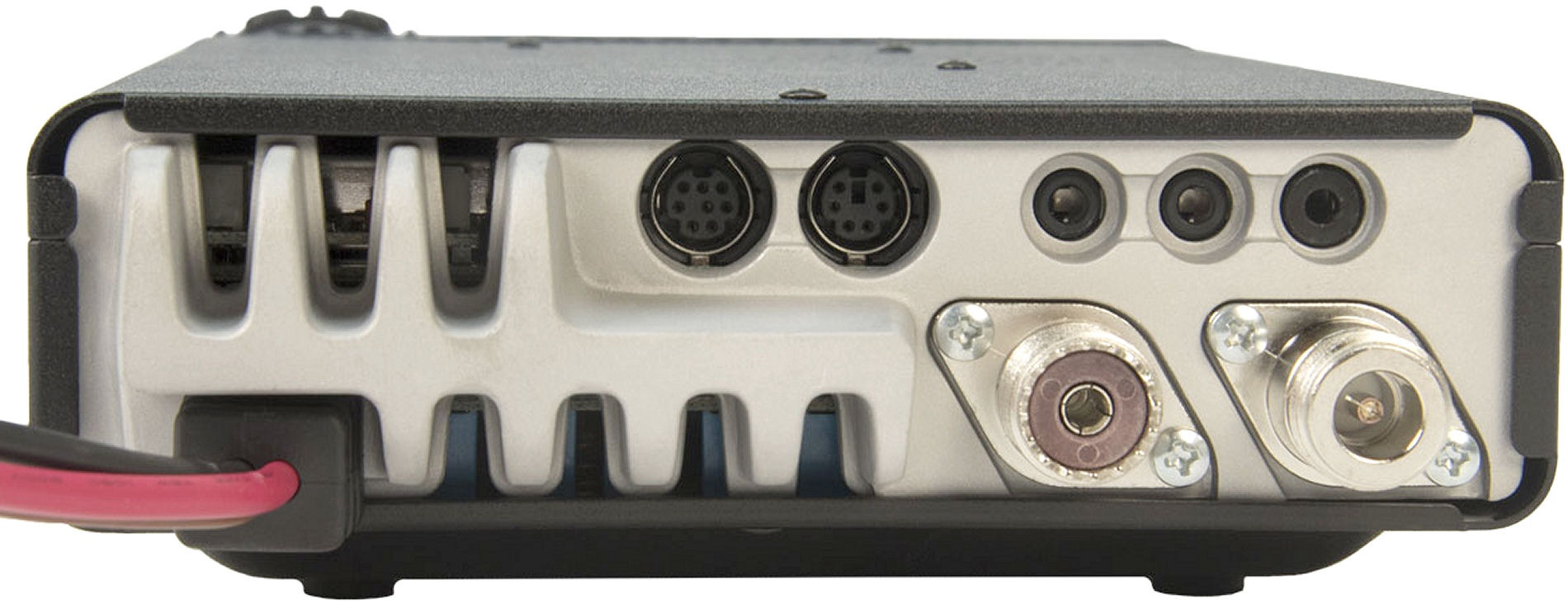

| Aerial Input: |
50 ohms, 2*SO-239 |
| Dimensions (W*H*D): |
155*52*233 mm |
| Weight: |
2.1 Kg |
| Manufactured: |
2004-200x |
| Other: |

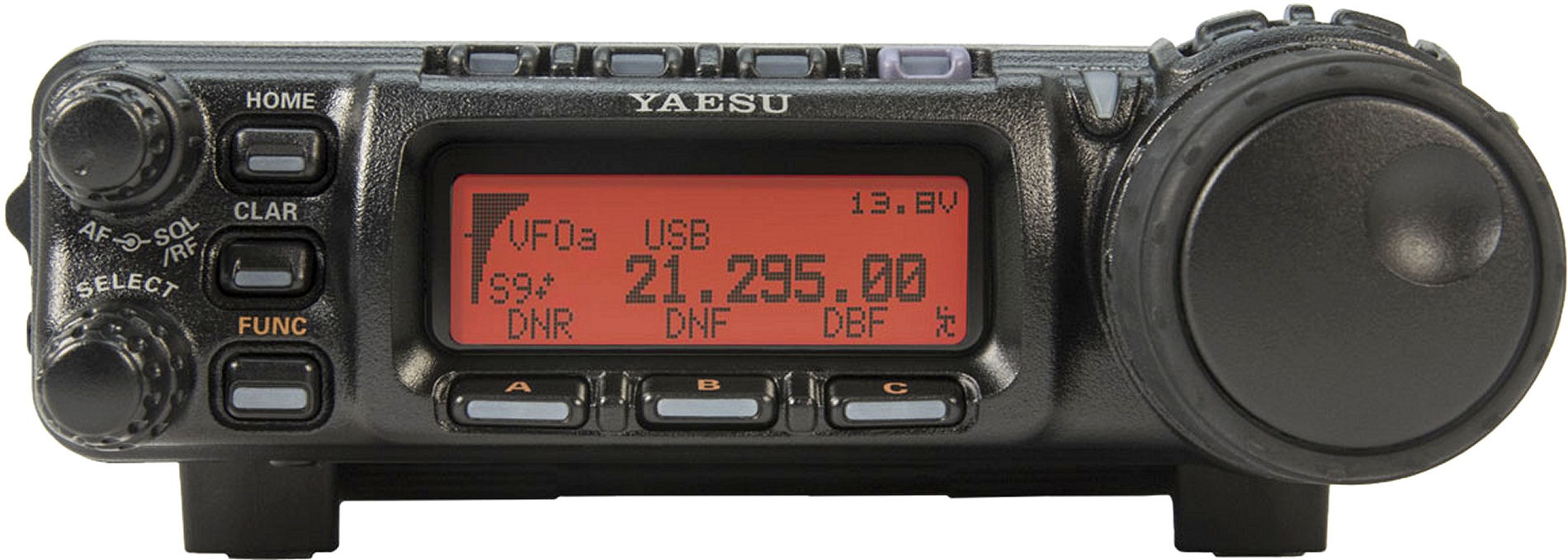

Built-in keyer. Beacon mode. 32 color display.
CTCSS. 200 memories. Detachable front panel.
DSP included in this updated version |
| Related Documents: |
User Manual (3.88 MB) |
