| Type: |

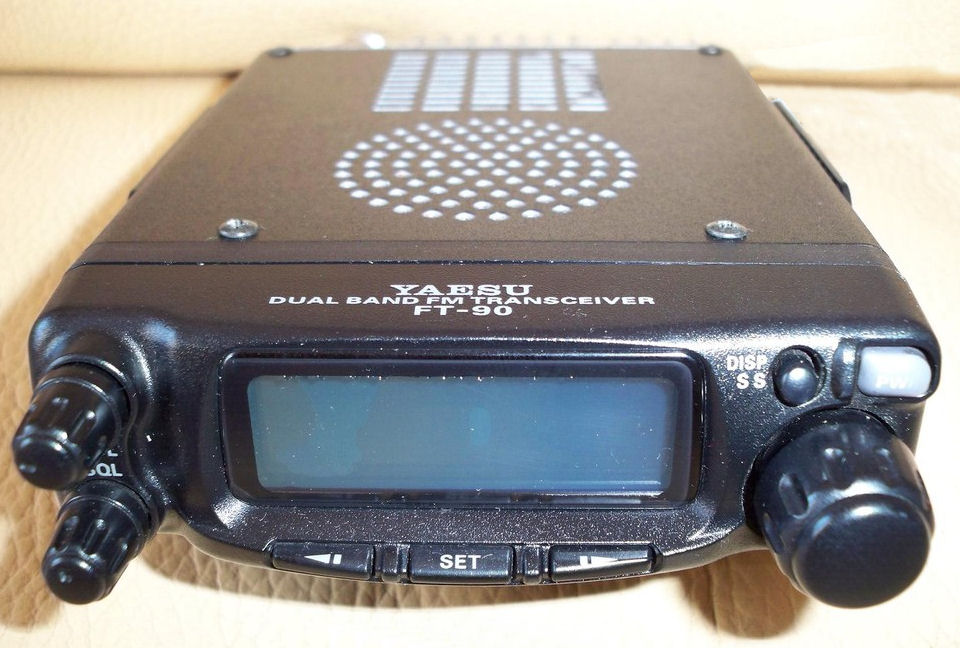

Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 / 430-450 MHz
RX: 100-230 / 300-530 / 810-1000 MHz (Cellular Blocked) |
| Modes: |
FM |
| RF Power output: |
50/20/10/5 W (144 MHz)
35/20/10/5 W (430 MHz) |
| Channel Steps: |
5/10/12.5/15/20/25/50 kHz |
| Voltage: |
13.8 VDC ą15%, Negative Ground |
| Current Drain: |
RX: 300mA (Squelched)
TX: Max 9.5A (144 MHz)
TX: Max 8.5A (430 MHz) |
| Aerial Input: |
50 ohms, Unbalanced (Antenna Duplexer Built-In) |
| Dimensions (W*H*D): |
100 x 30 x 138 mm |
| Weight: |
644 gr (1.42 lbs) |
| Manufactured: |
19xx-19xx |
| Other: |
American Version
Detatchable Front |
| Related Documents: |
User Manual (638 kb) |
