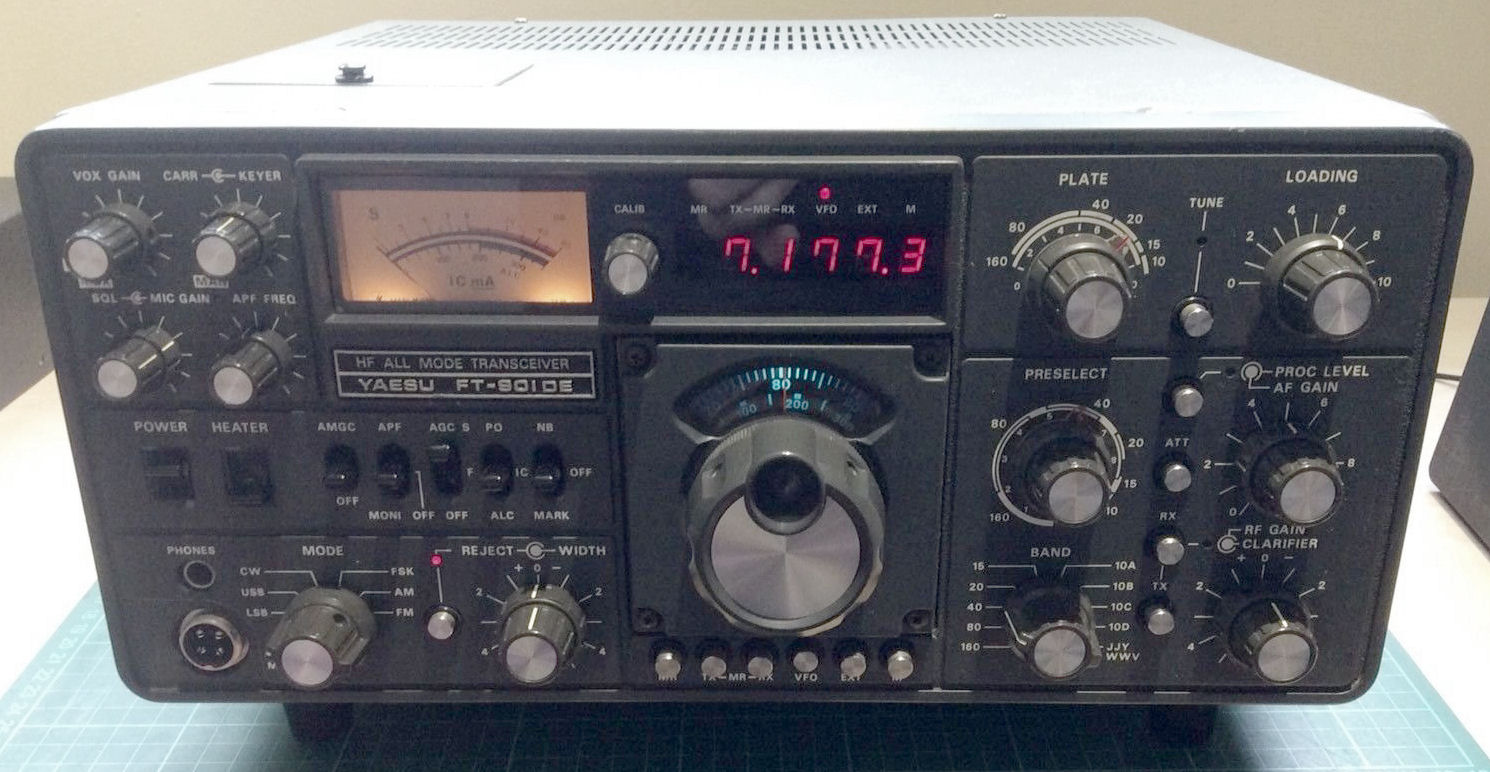

Yaesu FT-901DE
Type:
Amateur HF Transceiver
Frequency Range:
10-160 m
9 bands
TX/RX:
1.8-2.0 MHz
3.5-4.0 MHz
7.0-7.5 MHz
14.0-14.5 MHz
21.0-21.5 MHz
28.0-28.5 MHz
28.5-29.0 MHz
29.0-29.5 MHz>
29.5-29.9 MHz
RX:
5.0-5.5 or 15.0-15.5 MHz WWV/JJY
Modes:
All-mode
RF Power output:
SSB/CW: 100 W
AM/FM: 80 W
Sensitivity:
N/A
Selectivity:
N/A
Image rejection:
N/A
Voltage:
13.8 VDC or Mains
Current Drain:
RX: Max ? A
TX: Max ? A
Aerial Input:
50 ohms
Dimensions (W*H*D):
342*154*324 mm
Weight:
18 Kg
Manufactured:
197x-19xx
Other:
Related Documents:
Service Manual
(26.9 MB)
