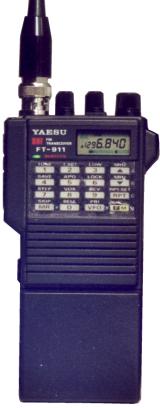

| Type: | Amateur UHF Transceiver |
| Frequency Range: | 1240-1300 MHz (10/12.5/20/25 KHz steps) |
| Modes: | FM |
| RF Power output: | Hi: 1 W Lo: 100 mW |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 5.5-15 VDC |
| Current Drain: | RX: 11-150 mA TX: Max 900 mA |
| Aerial Input: | 50 ohms, BNC |
| Dimensions (W*H*D): | 55*139*32 mm (with FNB-10) |
| Weight: | 430 gr (with FNB-10) |
| Manufactured: | Japan, 1990-199x |
| Other: | 49 memories |
