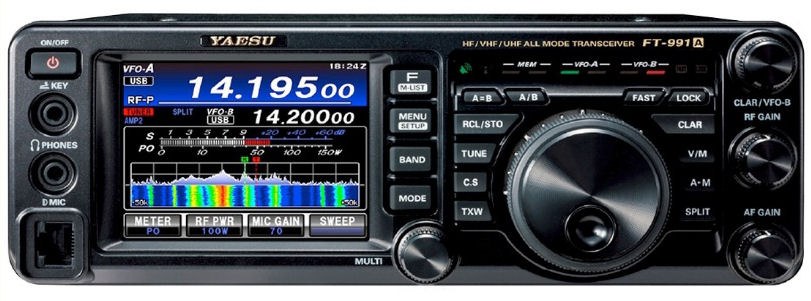

| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 6 m / 2 m / 70 cm
RX: 0.03-56 / 118-164 / 420-470 MHz |
| Modes: |
AM/FM/NFM/SSB/CW/RTTY/PSK/DV (C4FM) |
| RF Power output: |
HF + 6 m: 5-100 W (2-25 W AM)
VHF/UHF: 2-50 W (1-12 W AM) |
| Frequency Steps: |
5 / 10 / 100 Hz, 1 KHz |
| Memories: |
99 regular with alpha tags (12 characters)
9 PMS (Band edge pairs)
5 QMB (Quick Memory Banks)
Non-volatile EEPROM storage |
| Repeater Shift/Offset: |
10 m: ±10 KHz to 1 MHz (10 KHz steps)
6 m: ±10 KHz to 4 MHz (10 KHz steps)
2 m: ±10 KHz to 4 MHz (10 KHz steps)
70 cm: ±10 KHz to 10 MHz (10 KHz steps) |
| Voltage: |
13.8 VDC ±15% |
| Current Drain: |
RX: 1.8-2.2 A
TX: Max 23 A |
| Aerial Input: |
50 ohm (Tuner on, HF: 16.7-150 ohm, 6 m: 25-100 ohm) / 2*SO-239
(1*SO-239 + 1*N-jack for Europe) |
| Dimensions (W*H*D): |
229 x 80 x 253 mm |
| Weight: |
4.3 Kg (9.5 lb) |
| Manufactured: |
Japan: 2016-201x |
| Other: |
3.5" color touchscreen. CTCSS/PL and DCS. High speed spectrum scope.
"Fusion" Concept 32-bit IF-DSP. Built-in automatic antenna tuner.
USB connector. CAT & GPS connector. |
| Related Documents: |
User Manual (36.3 MB)
CAT Manual (1.4 MB)
GM Manual (2.3 MB) |
