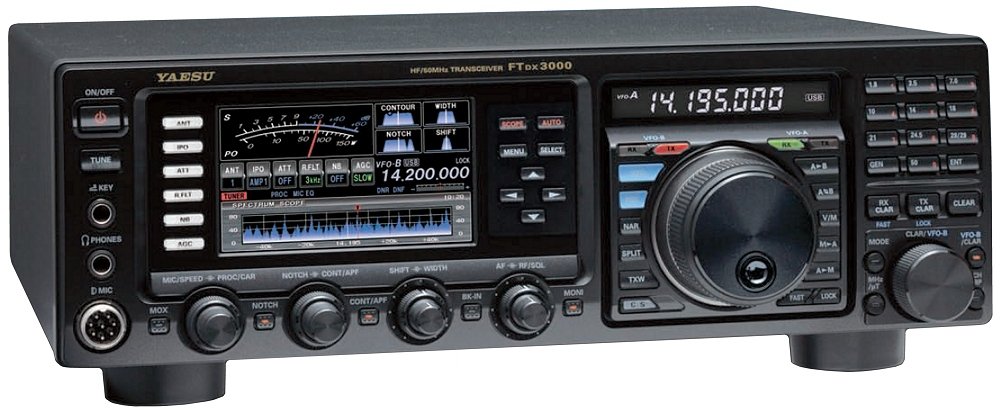

FTDX3000
| Frequency Range: |
TX: 10-160 m + WARC / 6 m
RX: 0.03-56 MHz |
| Modes: |
AM/FM/SSB/CW/RTTY/Packet |
| RF Power output: |
5-100/5-100 W |
| Voltage: |
13.8 VDC +/-10% |
| Current Drain: |
TX: Max 23 A
RX: 1.8-2.1 A |
| Aerial Input: |
16.7-150 ohms, 3*SO-239 |
| Dimensions (W*H*D): |
365 x 115 x 312 mm |
| Weight: |
10 Kg |
| Manufactured: |
2012-20xx |
| Other: |
Hi-perf crystal roofing filters. 3.5 inch TFT. High speed spectrum scope.
32 bit IF-DSP. 9 MHz IF output. Built-in auto-ATU. USB, CAT and µ-tune ports |
| Extras: |
Brochure (488 kb) |
|
