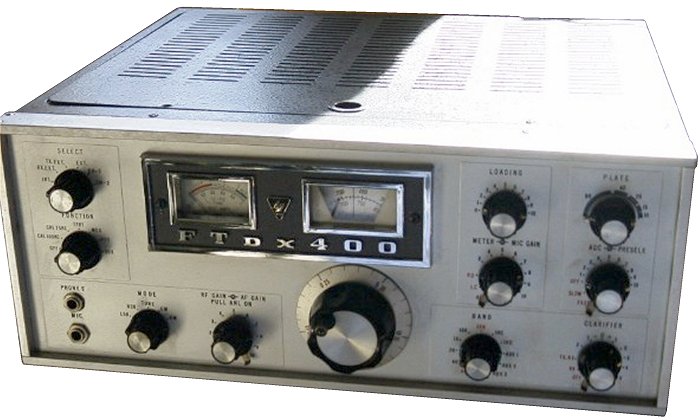

Yaesu FTDX400
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-80 m |
| Modes: |
AM/SSB/CW |
| RF Power output: |
SSB: 560 W (PEP input)
CW: 500 W (input)
AM: 125 W (input) |
| Sensitivity: |
0.5 uV (20 dB S/N) |
| Selectivity: |
2.3 KHz (-6 dB), 3.7 KHz (-60 dB) |
| Image rejection: |
50 dB |
| Voltage: |
Mains |
| Current Drain: |
RX: ? A
TX: Max ? A |
| Aerial Input: |
50-120 ohms, SO-239 |
| Dimensions (W*H*D): |
15.75 x 6.25 x 13.75" |
| Weight: |
40 Lbs |
| Manufactured: |
Japan, 19xx-19xx |
| Other: |
|
| Related Documents: |
User Manual (4.24 MB) |
|
