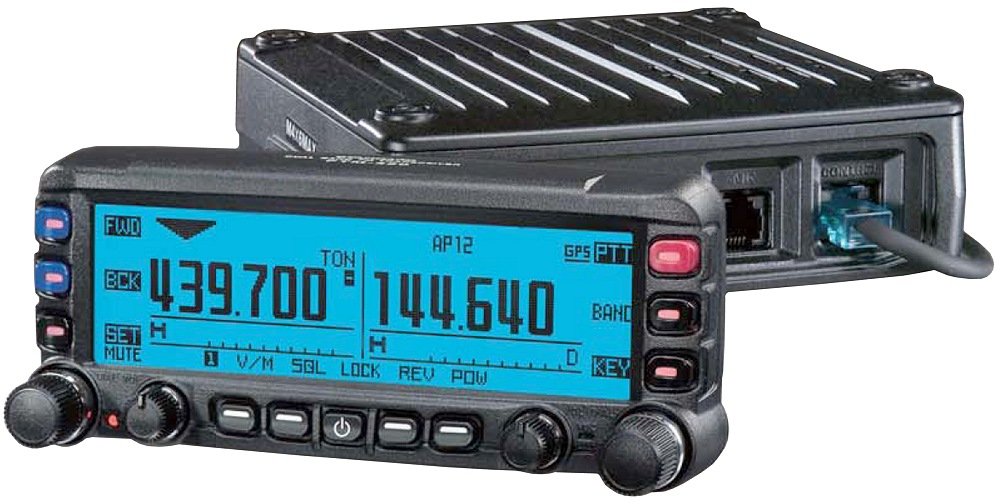

Yaesu FTM-350R
| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz (Europe)
TX: 144-148 / 430-450 MHz (USA)
RX: 0.5-1.7 / 76-250 / 300-1000 MHz (Cellular blocked in the US)
|
| Modes: |
TX: FM/NFM
RX: AM/FM/NFM/WFM Stereo |
| RF Power output: |
Hi: 50/50 W (20 / 20 W in Japan)
Mid: ??/?? W
Lo: ?/? W |
| Frequency Steps: |
5, 6.25, 8.22, 9, 10, 12.5, 15, 20, 25, 50, 100 KHz |
| Memories: |
500+500 Alpha Memories |
| Voltage: |
11.7-15.8 VDC |
| Current Drain: |
RX: ?? A
TX: ?? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
?? mm |
| Weight: |
?? Kg |
| Manufactured: |
2009-200x |
| Other: |

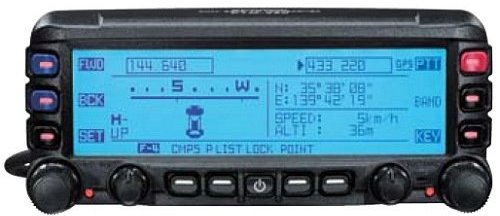

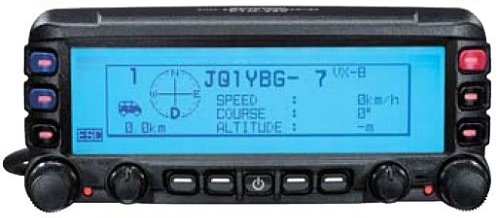

Bluetooth, GPS/APRS functions. Packet 1200/9600bd ready

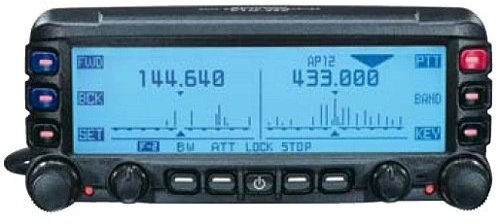

ARTS.Band scope. 8 different background colors. Twin RX |
| Other: |
Related Documents: |
|
|
