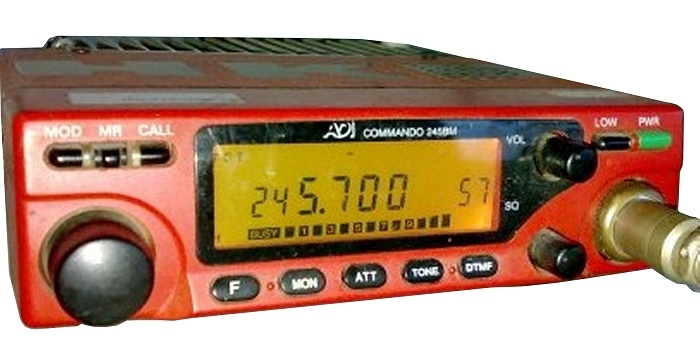

ADI Commando 246BM

Type: Citizen Band Transceiver (Thailand CB245)
Frequency Range: 245.0000-245.9875 MHz
Channels: 80
Memories: 81
Frequency Steps: 12.5 KHz
Modes: FM
RF Power Output: Hi: 30 W
Mid: 15 W
Lo: 7 W
Receiver System: Double conversion superheterodyne
1st IF: 30.85 MHz
2nd IF: 455 KHz
Sensitivity: 0.18 uV (12 dB SINAD)
Selectivity: 70 dB (no reference)
Image Rejection: N/A
Voltage: 11.7-15.8 VDC
Current Drain: RX: Max 600 mA
TX: Max 9 A
Antenna Input: 50 ohms
Dimensions (W*H*D): 140 x 40 x 166 mm
Weight: 1.2 Kg
Manufactured: 199x-20xx
Related documents: N/A
