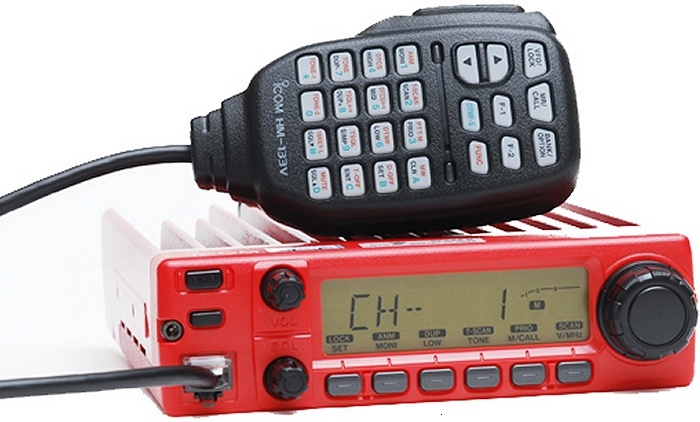

Icom IC-2100FX
| Type: |
Citizen Band Transceiver (Thailand CB245) |
| Frequency Range: |
245.0000-245.9875 MHz |
| Channels: |
80 |
| Memories: |
N/A |
| Frequency Steps: |
12.5 KHz |
| Modes: |
FM |
| RF Power Output: |
Hi: 10 W
Lo: 3 W |
| Receiver System: |
Double conversion superheterodyne
1st IF: 31.05 MHz
2nd IF: 450 KHz |
| Sensitivity: |
0.2 uV (12 dB SINAD) |
| Selectivity: |
N/A |
| Image Rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1200 mA
TX: Max 3 A |
| Antenna Input: |
50 ohms |
| Dimensions (W*H*D): |
140 x 40 x 180 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
20xx-20xx |
| Other: |
CTCSS/PL |
| Related documents: |
N/A |
|
