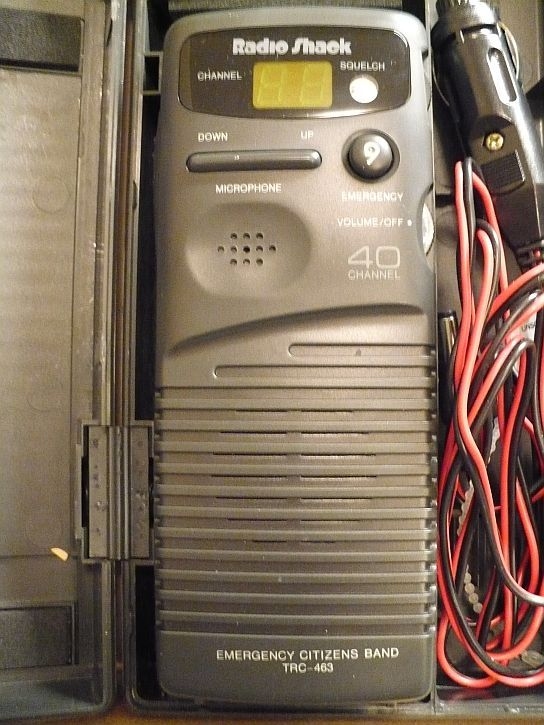

RadioShack TRC-463 {USA Catalog Number: 21-1558}*
| Type: |
Citizen Band Emergency Transceiver |
| Frequency Range: |
26.965-27.405 MHz |
| Channels: |
40 |
| Modes: |
AM |
| Frequency Control: |
N/A |
| Power Output: |
4 W |
| Aerial Input: |
50 Ohms, Phono (RCA) |
| Voltage: |
12-14 VDC (Barrel Connector) |
| Current Drain: |
RX: Max 600 mA
TX: Max 1.2 A |
| Dimensions (W*H*D): |
52 x 168 x 37 mm mm
2.06 x 6.62 x 1.44 inches |
| Weight: |
340 g (12 oz) |
| Manufactured: |
Korea: 1994-199x (Discontinued) |
| Other: |
|
| USA ID Numbers: |
FCC ID: ??? |
| Related Documents: |

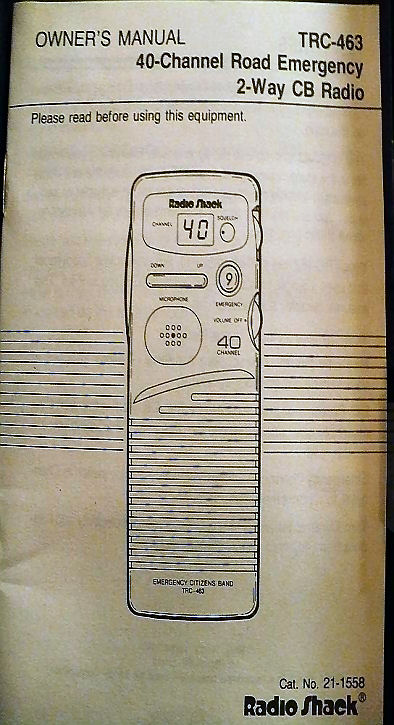

Service Manual (2.96 MB) |
 |
