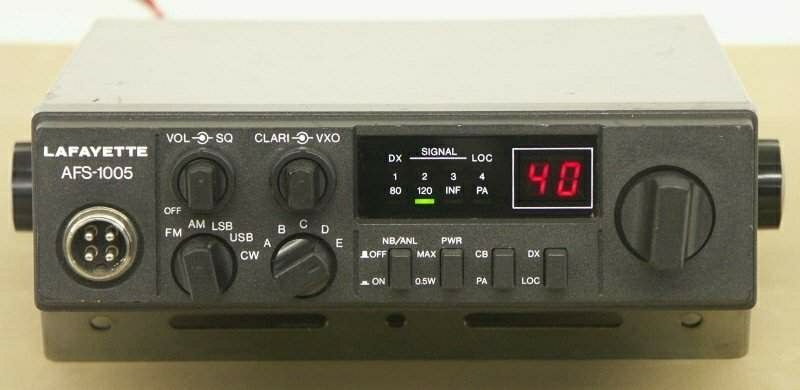

Lafayette AFS 1005
| Type: |
Citizen Band Transceiver |
| Frequency Range: |
26.515-28.755MHz |
| Channels: |
200 |
| Modes: |
AM/FM/SSB/CW |
| Frequency Control: |
PLL (PLL02A) |
| Power Output: |
AM: Lo: 0.5 W, Hi: 5.5 W
FM: Lo: 0.5 W, Hi 10 W
SSB: Lo: 0.5 W, Hi 12 W
CW: Lo: 0.5 W, Hi 10 W |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 0.7 A
TX: Max 2.9 A |
| Dimensions (W*H*D): |
175*50*225 mm |
| Weight: |
2.15 Kg |
| Manufactured: |
1982-1984 (PCB by CYBERNET Enterp.Co Japan) |
| Other: |
Board: PTBM131A4X |
