| Type: |

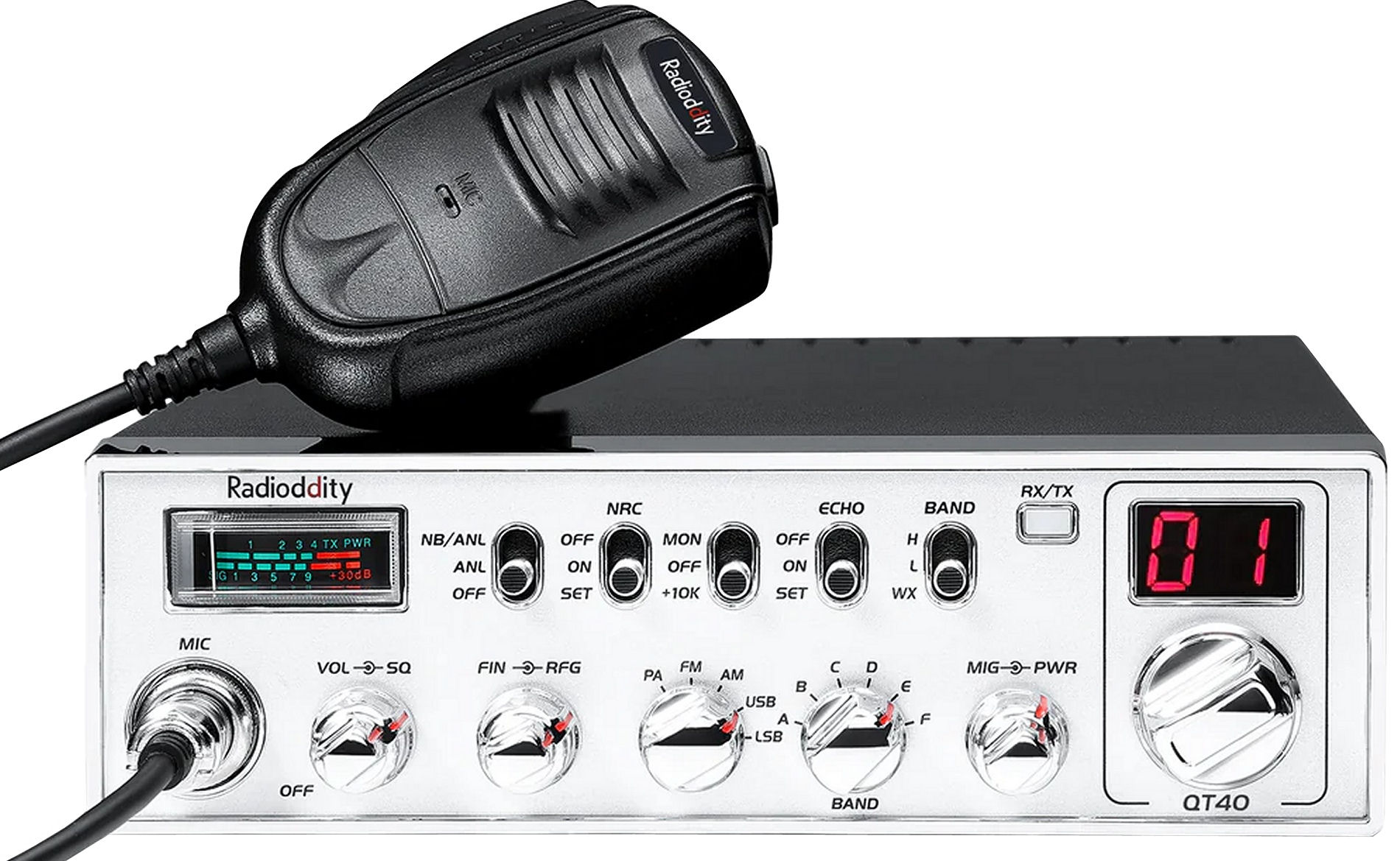

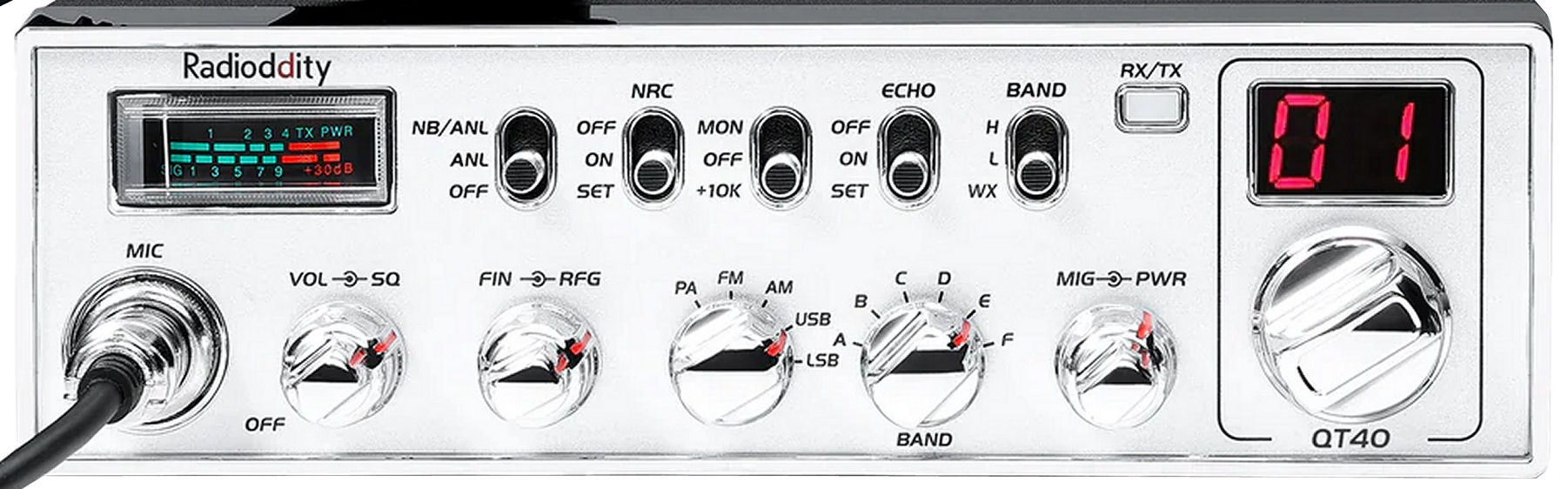

Citizen Band Transceiver |
| Frequency Range: |
Export Mode: 24.715-30.105 MHz
10M Mode: 28.000-29.695 MHz
10 NOAA: weather channels or 140-170 MHz (RX only) |
| Channels: |
480 (6x 40 Hi and 6x 40 Lo) |
| Modes: |
AM/FM/SSB |
| Frequency Control: |
PLL |
| Power Output: |
AM: 1-12 W
FM: 1-40 W
SSB: 1-35 W |
| Voltage: |
13.8 VDC (3-Pin Connector) |
| Current Drain: |
RX: 300-700 mA
TX: Max 3 A |
| Dimensions (W*H*D): |
200 x 61 x 287 mm
7.87 x 2.4 x 11.3 inches |
| Weight: |
1.5 Kg
3.3 lbs |
| Manufactured: |
China: 2023-202x
New price: £151.53 (From Radioddity, February 2026) |
| Other: |
CTCSS/PL an DCS. Noise reduction. Weather alert. NB/ANL..
+10 KHz button. ±100 KHz repeater offset. Dimmer. SWR meter.
PA. VOX. Echo chamber. Roger beep. Scanning. PC programmable. |
| Related Documents: |
User Manual (775 kb) |
| Sams Photofact: |
|
| FCC Data (ID): |
|
