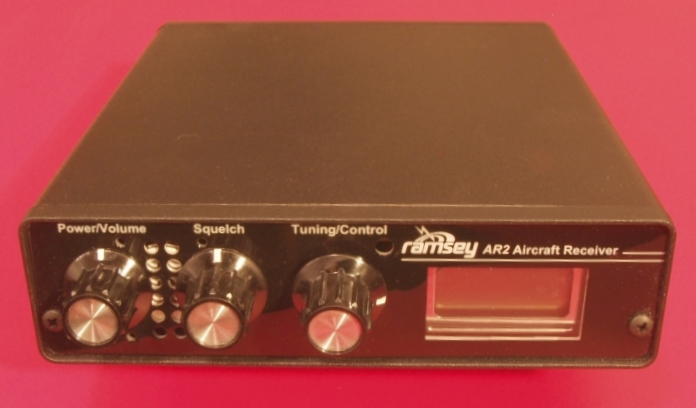

Ramsey AR2
| Type: |
Air Craft Receiver/Scanner |
| Frequency Range: |
118-136 MHz |
| Receiver Type: |
Dual Conversion PLL |
| Mode: |
AM |
| Scanner Banks: |
4 user Memory scanner banks, 20 frequencies each |
| Manufactured: |
USA, 2007-20xx |
| Increment Steps: |
25 kHz |
| IF Frequencies: |
10.7 MHz & 450 KHz |
| Receiver Sensitivity: |
Less than 1 uV across the band |
| Image Rejection: |
Greater than -80 dB |
| Adjacent Ch. Rejection: |
Greater than -40 dB |
| Antenna input: |
50 Ohms BNC |
| Audio output: |
watt, 8 ohms |
| Power requirements: |
12VDC, 500mA |
| Light Controller Output: |
3, 5, and 7 events output
to controller |
| Dimensions: |
5.55"W x 6.45"D x 1.5" H |
| Weight: |
113.4 gr (Completed with 9V Battery) |
| Manufactured: |
USA, 2007-20xx |
| Other: |

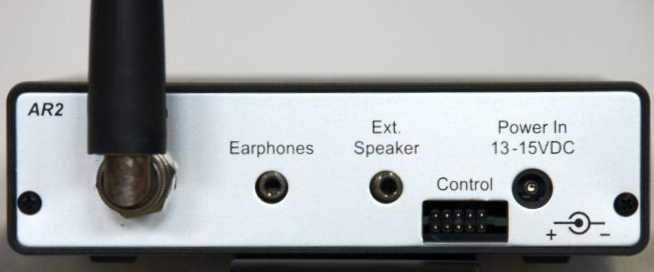

speaker out, headphone out

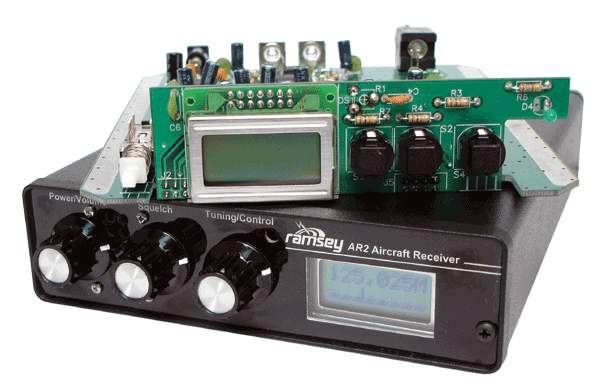

Comes in Kit form |
| Related Documents: |
User Manual (472 KB) |
|
