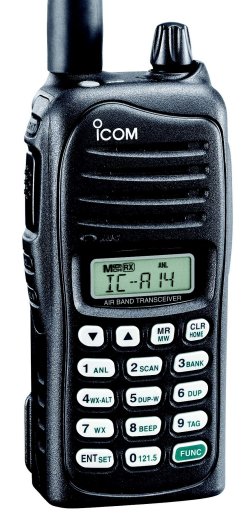

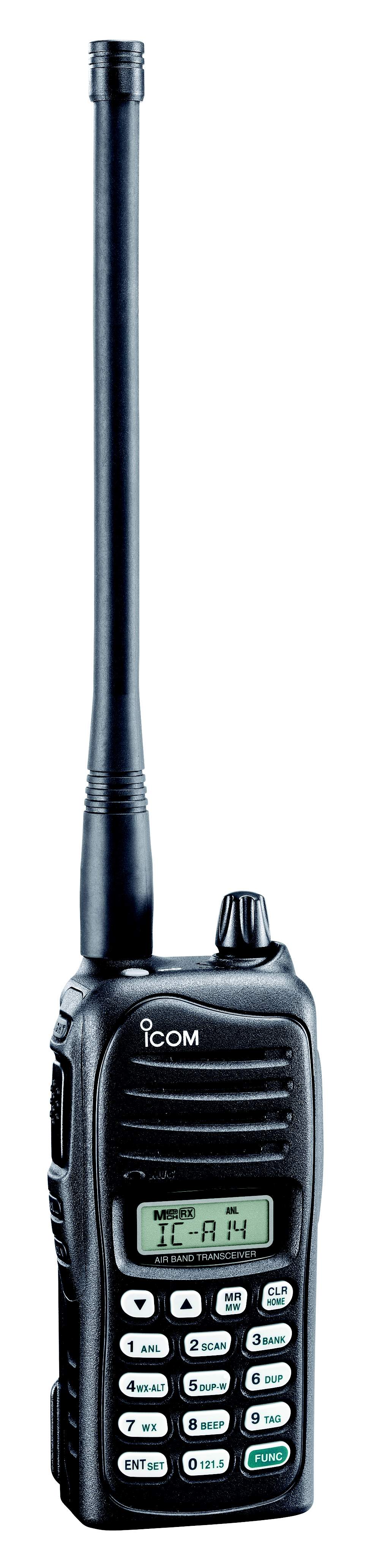

Icom IC-A14
| Type: |
Airband Transceiver |
| Frequency Range: |
TX: 118.000 to 136.975 MHz
RX: 108.000 to 136.975 MHz
RX: 161.650-163.275 weather channels |
| Modes: |
AM
FM (WX only) |
Memories: |
200 (20ch x 10 Banks) |
| RF Power output: |
5 W |
| Voltage: |
7.4 VDC |
| Current Drain: |
RX: 70-300 mA
TX: Max 1.5 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
53 x 120 x 36.9 mm |
| Weight: |
180 gr (without Battery Pack & Antenna |
| Manufactured: |
2009-200x |
| Other: |
|
| Related Documents: |
Instruction Manual (2.89 Mb) |
|
