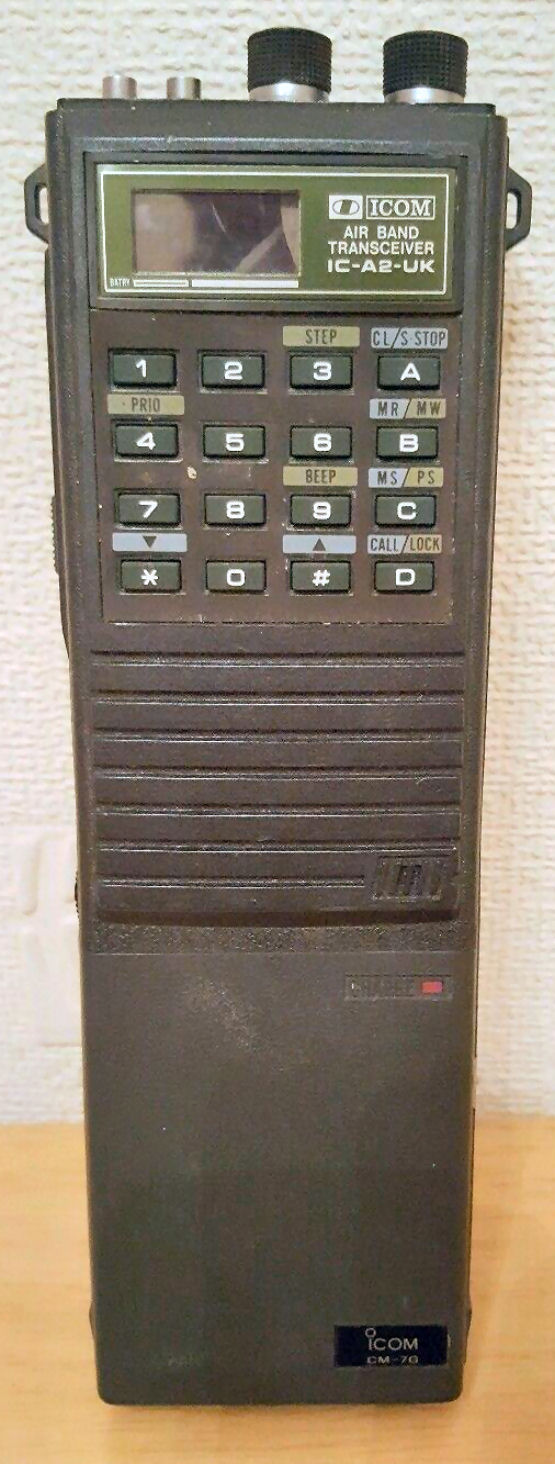

Icom IC-A2-UK
| Type: |
Airband Transceiver |
| Frequency Range: |
108-136 MHz |
| Modes: |
AM |
| Memories: |
|
| RF Power output: |
Hi: 1.5 W, Lo: 0.5 W |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 55-220 mA, TX: Max 900 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
65*196*38 mm |
| Weight: |
590 gr (incl battery & antenna) |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
Owner's Manual (5.31 MB)
Maintenance Manual (8.92 MB) |
 |
