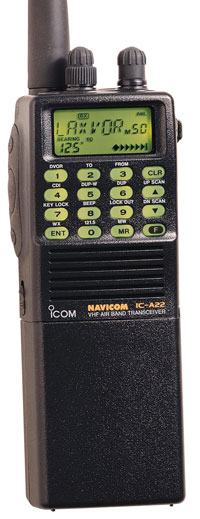

Icom IC-A22
| Type: |
Airband Transceiver |
| Frequency Range: |
108-137 MHz (25 KHz steps) |
| Modes: |
AM |
| Memories: |
50 + 121.5 MHz quick access |
| RF Power output: |
1.5 W |
| Voltage: |
12-13.8 VDC |
| Current Drain: |
RX: ? mA, TX: Max ? A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
57*153*35 mm |
| Weight: |
465 gr |
| Manufactured: |
199x-200x |
| Other: |
Includes a VOR receiver with CDI function.
The navigation features include TO and FROM the VOR, Course Deviation
Indicator and Automatic Bearing Set System. This transceiver also has a
scanning function.
New price 2000 in the UK: £399.00 |
| Related Documents: |
Instruction Manual (2.62 MB) |
|
