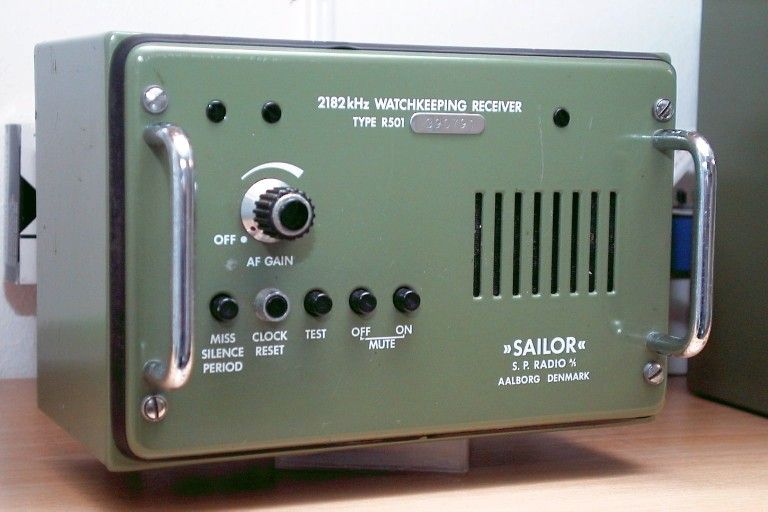

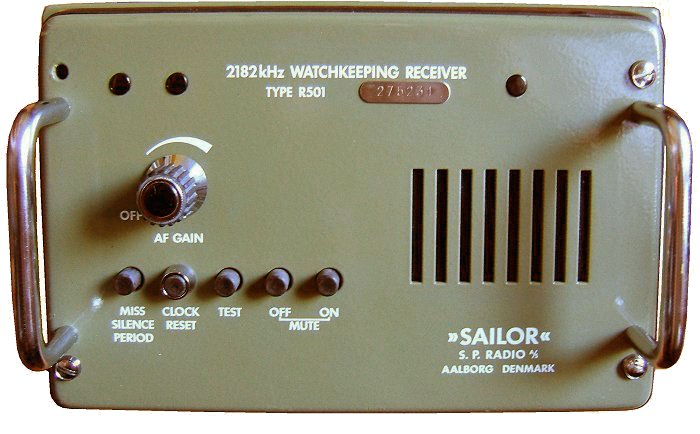

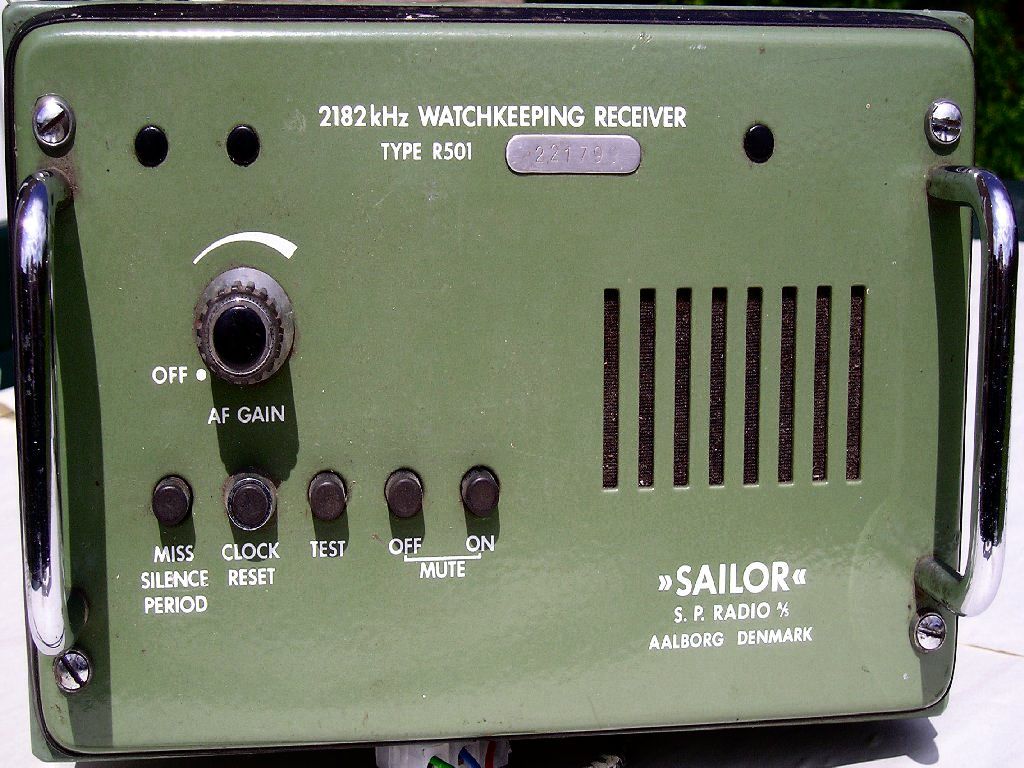

Sailor R501
| Type: |
Professional Marine Receiver |
| Frequency Range: |
2.182 MHz (single channel) |
| Modes: |
AM |
| Sensitivity: |
Better than 1 uV |
| Selectivity: |
20 KHz (-40 dB), 40 KHz (-50 dB) |
| Image rejection: |
N/A |
| Voltage: |
24 VDC or Mains |
| Current Drain: |
100-350 mA |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
230 x 150 x 162 mm |
| Weight: |
? Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
Manual (25.4 MB) |
 |
