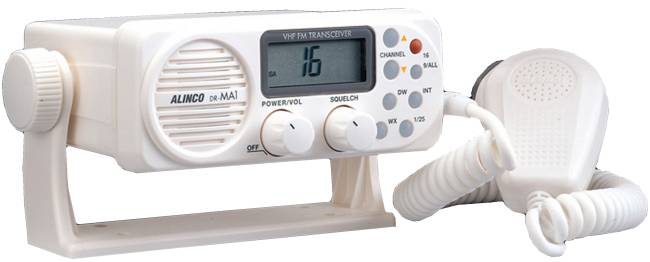

Alinco DR-MA1
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
TX: 156.275-157.425 MHz (54 channels)
RX: 156.025-163.275 MHz (86 channels)
RX: Weather channels |
| Modes: |
FM |
| RF Power Output: |
Hi: 25 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
11.5-15.6 VDC |
| Current Drain: |
RX: ? mA
TX: Max 6 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
150*60*118 mm |
| Weight: |
1.1 Kg |
| Manufactured: |
19xx-200x |
| Other: |
|
| Related Documents: |
|
|
