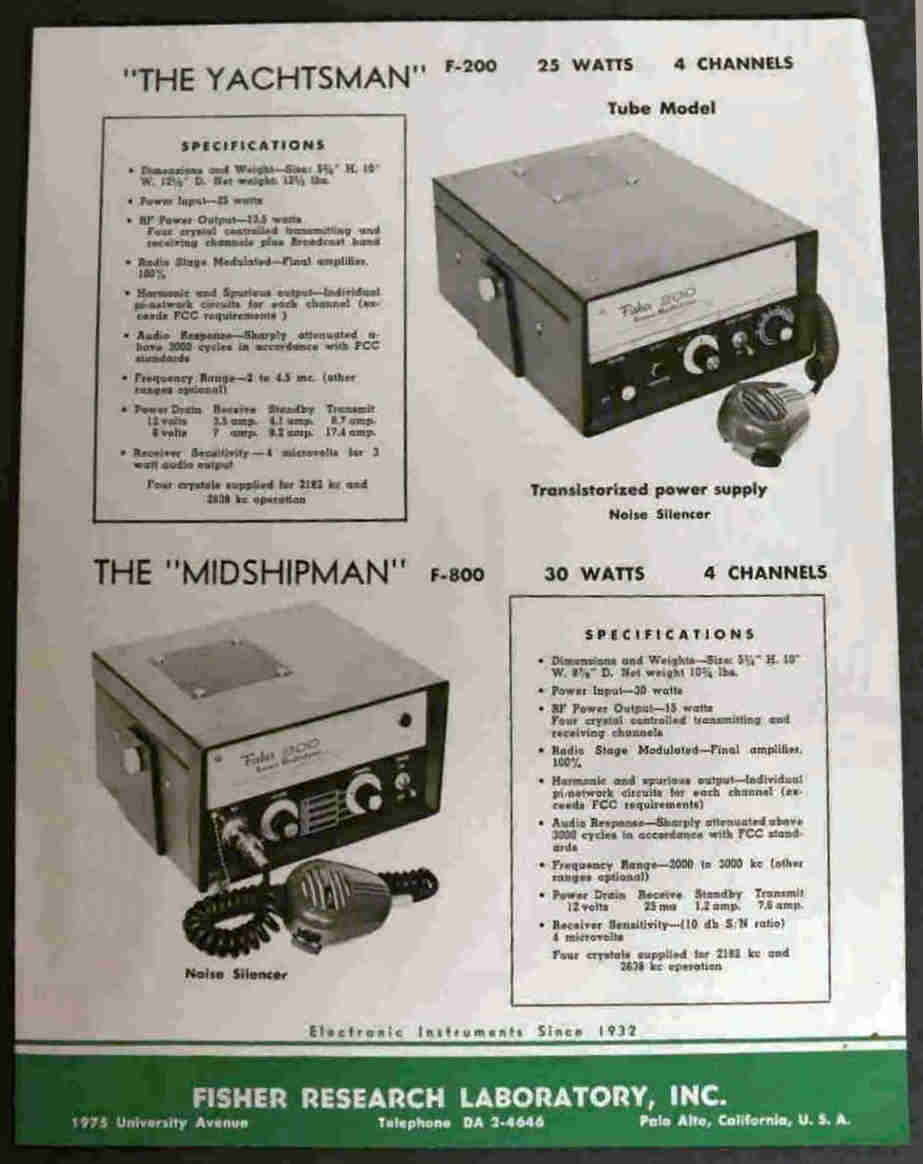

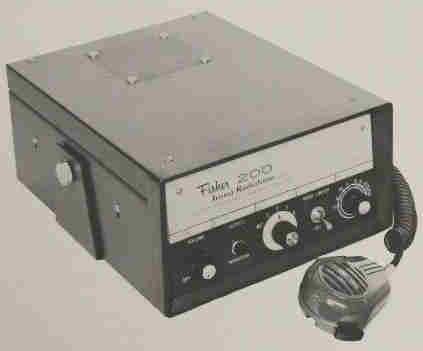

Fisher F-200 (The Yachtsman)

Type: Professional Marine transceiver
Frequency Range: 2-4.5 MHz
Modes: AM
RF Power Output: 12.5W (25W Input)
Channels: 4
Voltage:
Current Drain: 12V: RX: 3.5 A / TX: Max 8.7 A
6V: RX: 7.0 A / TX: Max 17.4 A
Aerial Input: ? ohms
Dimensions (W*H*D): 10 x 5 x 12 inches
Weight: 12 lbs
Manufactured: USA: 19xx-19xx
New Price: $249.50 (USA, 1962)
Other: 4 Crystals Supplied for: (2182 & 2638 kHz)
Related Documents:
