| Type: |
Professional Marine transceiver |
| Frequency Range: |
RX: 0.1-30 MHz
TX: 1.6-27.5 MHz |
| Modes: |
J3E, H3E (SSB: LSB/USB), J2B (DSP,NBDP, SSB), F3C (WeFAX Receive) |
| Channels: |
256 RX/TX Pairs, User Programmable
All ITU Channels |
| RF Power Output: |
SSB: Max 150 W PEP |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
24V DC |
| Current Drain: |
RX: 5 A
TX: Max 20 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |

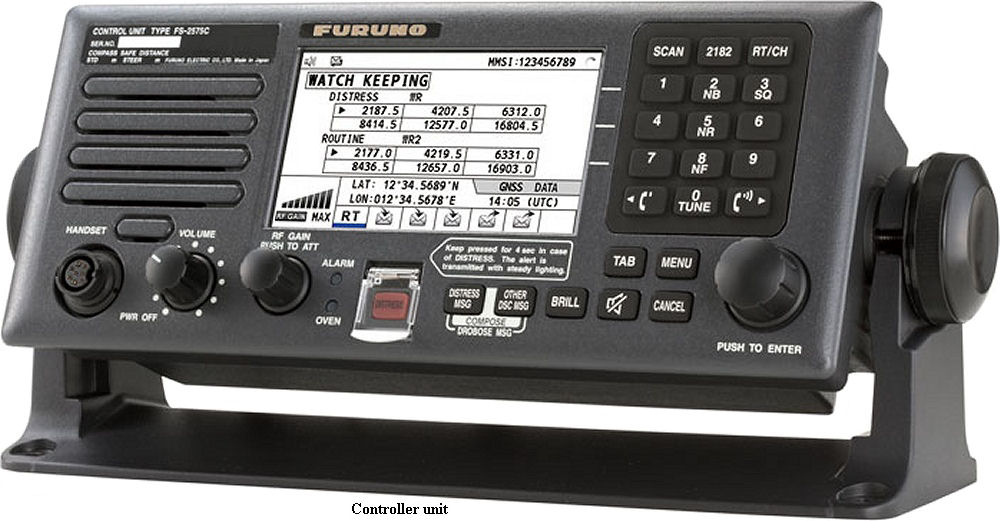

Control unit: 258 x 108 x 93 mm (10.16 x 4.25 x 3.66 inches)
Transceiver: 340 x 208 x 472 mm (13.39 x 8.19 x 18.6 inches) |
| Weight: |
Control unit: 1.9 Kg (4.2 lb)
Transceiver: 16 Kg (35.3 lb) |
| Manufactured: |
2011-201x (Discontinued) |
| Other: |
Dual watch
GMDSS |
| Related Documents: |
Operator's Manual (27.5 Mb)
Installation Manual (9.03 MB) |
