| Type: |

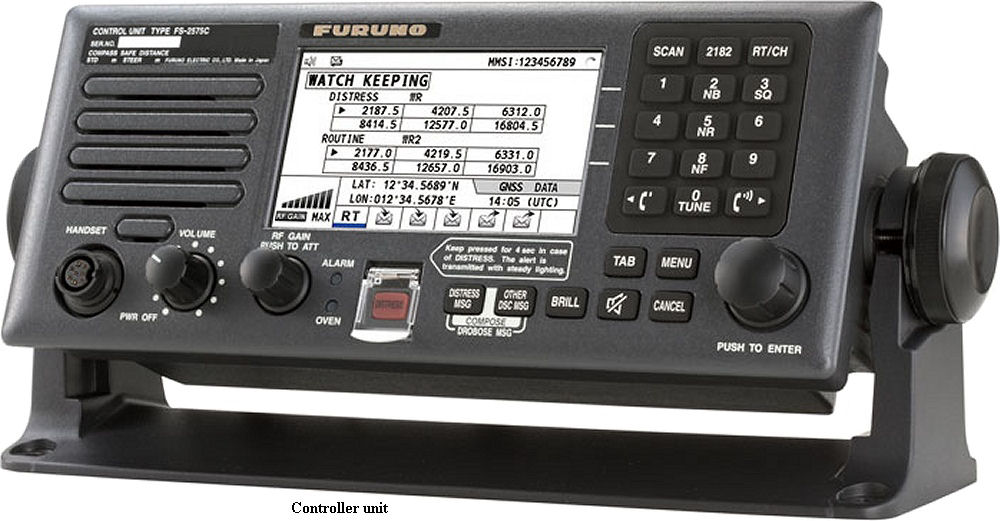

Professional Marine transceiver |
| Frequency Range: |
RX: 0.1-30 MHz
TX: 1.6-27.5 MHz |
| Modes: |
J3E, H3E (SSB: LSB/USB), J2B (DSP,NBDP, SSB), F3C (WeFAX Receive) |
| Channels: |
256 |
| RF Power Output: |
MF: 400 W PEP, HF: 500 W PEP |
| Voltage: |
24 VDC |
| Current Drain: |
RX: 5A
TX: Max 60 Ax |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
Control unit: 258 x 108 x 93 mm (10.16 x 4.25 x 3.66 inches)
Transceiver: 340 x 208 x 472 mm (13.39 x 8.19 x 18.6 inches) |
| Weight: |
Control unit: 1.9 Kg (4.2 lb)
Transceiver: 16 Kg (35.3 lb) |
| Manufactured: |
2011-201x (Discontinued) |
| Other: |
Dual watch
GMDSS |
| Related Documents: |
Operator's Manual (27.6 MB)
Installation Manual (9.03 MB) |
