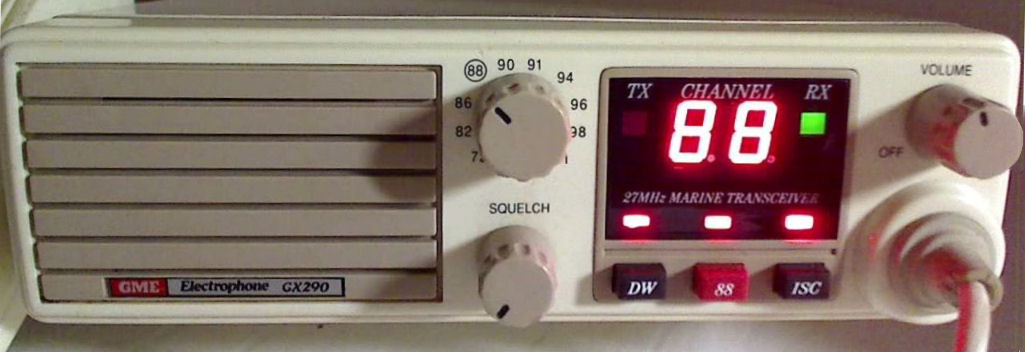

GME GX290
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
27.680-27.980 (Australian Band) |
| Modes: |
AM |
| RF Power Output: |
4 W |
| Sensitivity: |
0.6 uV (12 dB SINAD) |
| Selectivity: |
6 KHz (-36 dB), 10 KHz (-60 dB) |
| Image rejection: |
-70 dB |
| Voltage: |
10.8-15.2 VDC |
| Current Drain: |
RX: 320-810 mA
TX: Max 1.6 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
172 x 52 x 173 mm |
| Weight: |
? Kg |
| Manufactured: |
Australia, xxxx-xxxx |
| Other: |
12 channels (10 fitted from factory) |
| Related Documents: |
User Manual (1.17 MB) |
|
