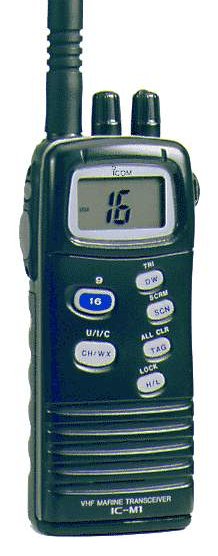

Icom IC-M1
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
RX: 156-163 MHz
TX: 156.025-157.5 MHz |
| Modes: |
FM |
| RF Power Output: |
Max 5 W |
| Voltage: |
7.2-8.4 VDC (Battery Packs) |
| Current Drain: |
RX: Max 300 mA, TX: Max 1.8 A |
| Aerial Input: |
N/A |
| Dimensions (W*H*D): |
52.5 x 129 x 30 mm |
| Weight: |
280 gr |
| Manufactured: |
N/A |
| Other: |
|
| Related Documents: |
User Manual (226 Kb) |
|
