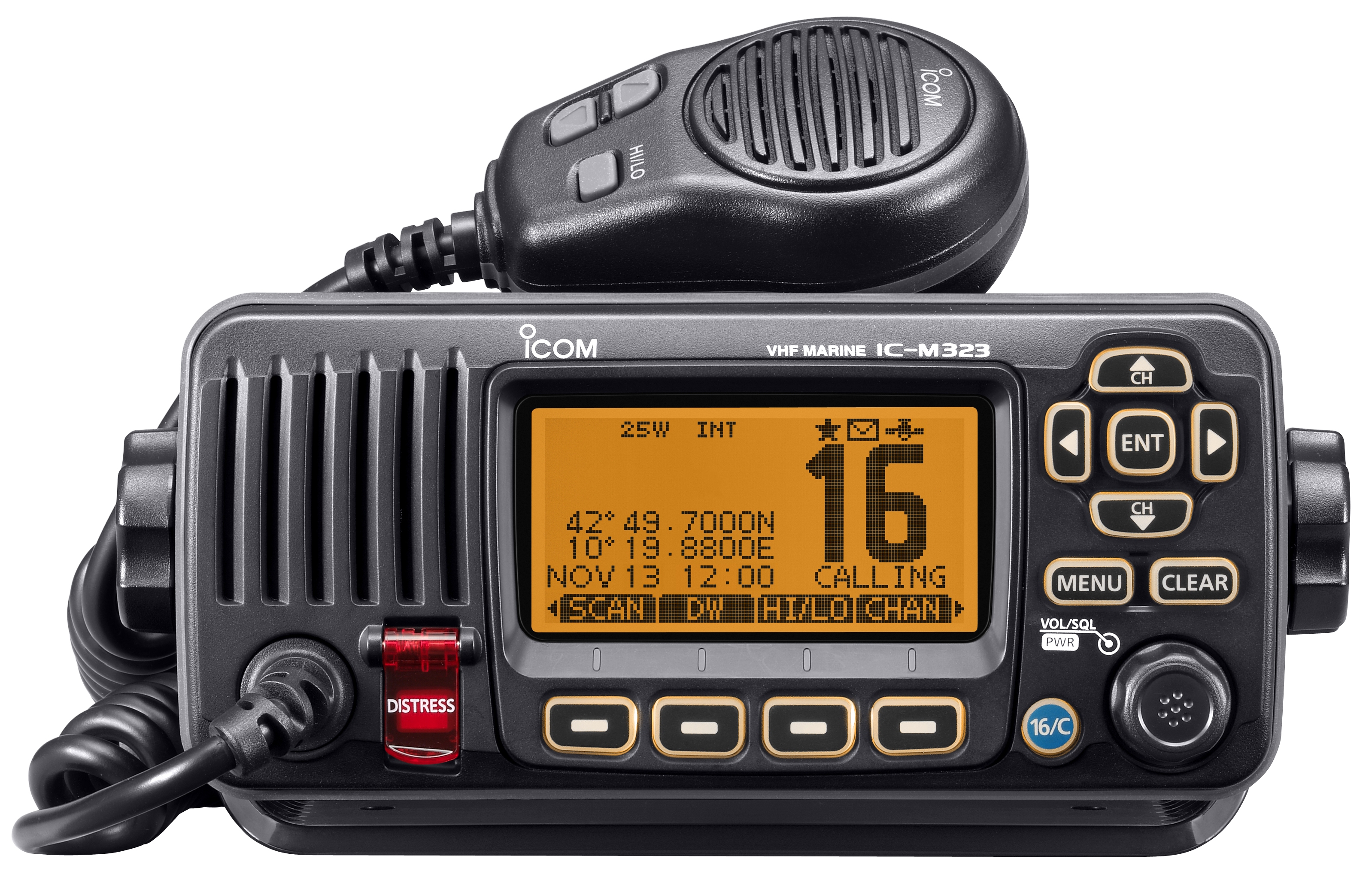

Icom IC-M323
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
TX: 156.000-161.450 MHz
RX: 156.000-163.425 MHz |
| Modes: |
FM |
| RF Power Output: |
Hi: 25 W, Lo: 1 W |
| Memory Channels: |
N/A |
| Search Banks: |
N/A |
| Priority Channels: |
N/A |
| Scan Speed: |
8 Channels / Second |
| Search Speed: |
N/A |
| Increment Steps: |
25 kHz |
| Scan Delay: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
TX: 5.5A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
153(W) x 67(H) x 133(D) mm |
| Weight: |
825 g |
| Manufactured: |
200x-20xx |
| Other: |
N/A |
| Related Documents: |
User Manual(4.80 MB) (Early)
User Manual (5.2 MB) (Later)
|
|
