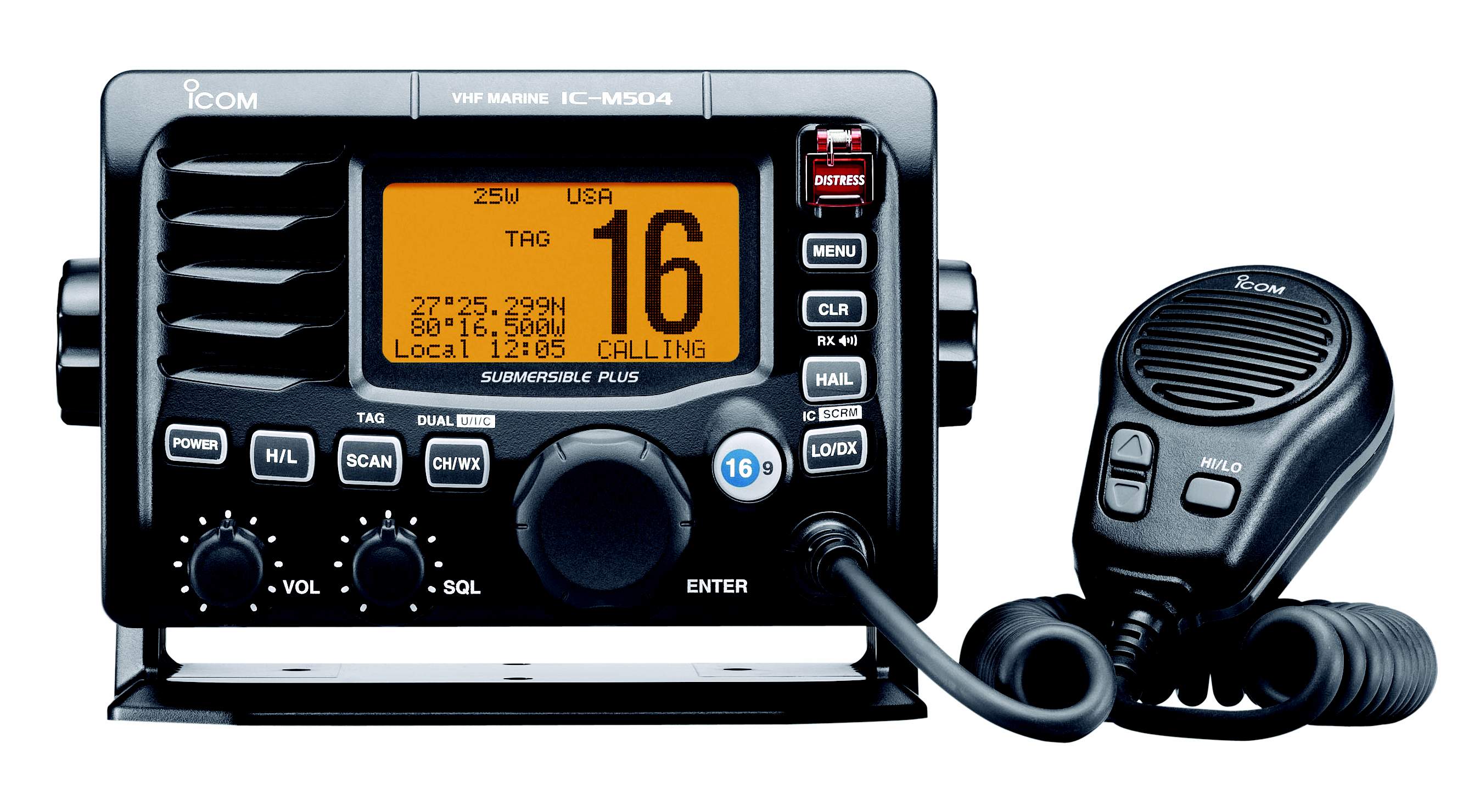

Icom IC-M504

Type: Professional Marine Transceiver
Frequency Range: RX: 156-163.425 MHz
TX: 156-161.450 MHz
Modes: FM
RF Power Output: 25W, 1W
Voltage: 13.8VDC (10.8 to 15.6 V)
Current Drain: RX: Max 1.5 A, TX: Max 6.0 A
Aerial Input: PL-259
Dimensions: 165(W) x 110(H) x 109.4(D) mm
Weight: 1130 gr
Manufactured: N/A
Related Documents: Instruction Manual (1.14 MB)
