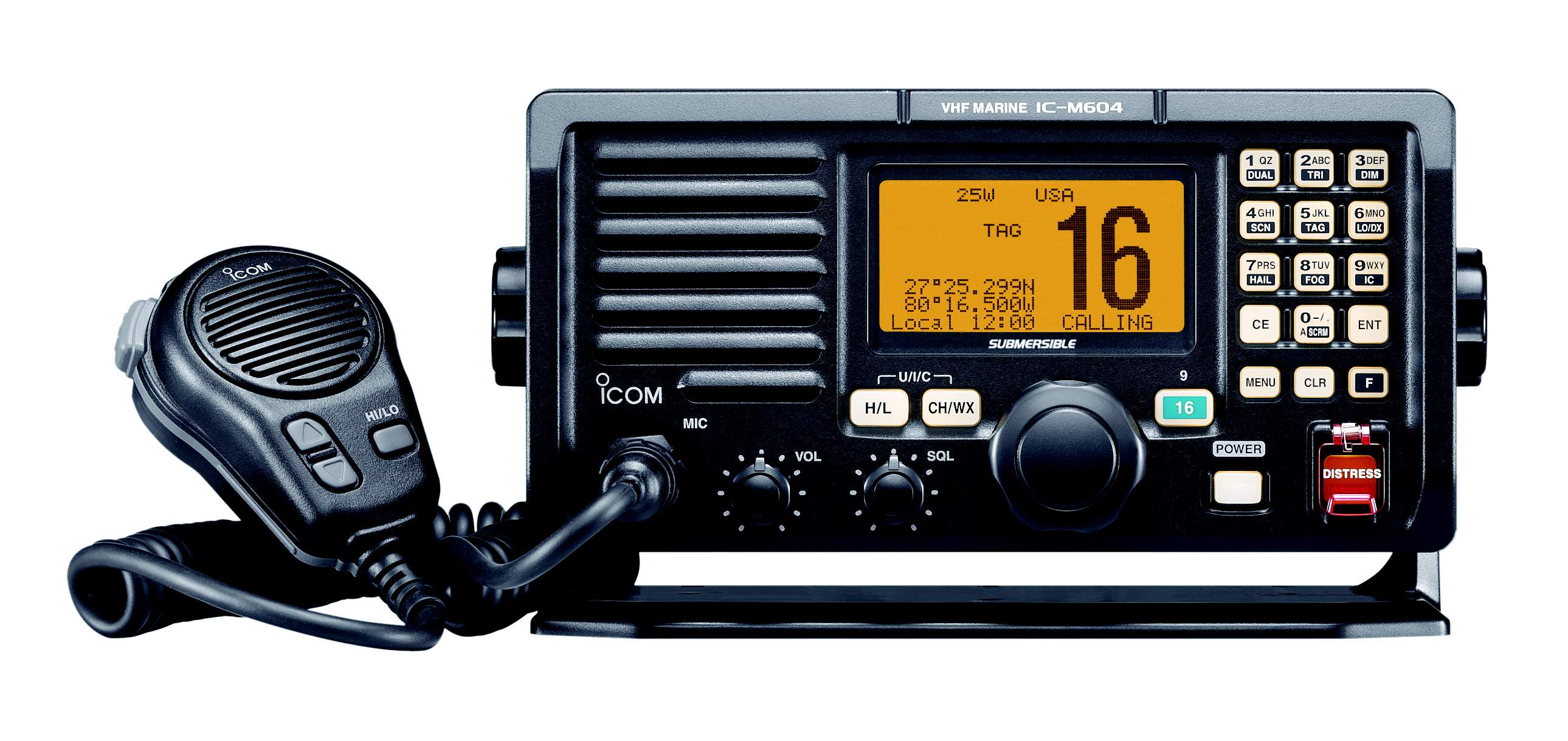

Icom IC-M604
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
RX: 156.050-163.275 MHz
TX: 156.025-157.425 MHz |
| Modes: |
FM |
| RF Power Output: |
25W, 1W |
| Voltage: |
13.8VDC (10.8 to 15.6 V) |
| Current Drain: |
RX: Max 1.5 A, TX: Max 5.5 A |
| Aerial Input: |
PL-259 |
| Dimensions: |
220(W) x 110(H) x 109.4(D) mm |
| Weight: |
1400 gr |
| Manufactured: |
N/A |
| Other: |
|
| Related Documents: |
Instruction Manual (1.03 MB) |
 |
