| Type: |

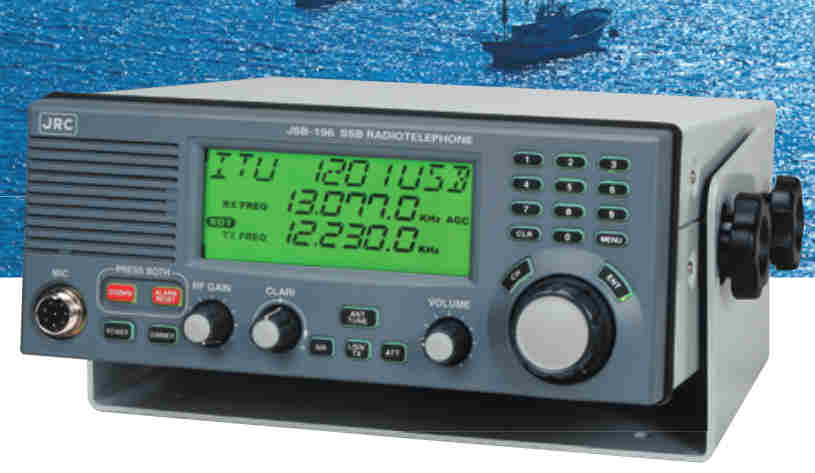

Professional Marine Transceiver |
| Frequency Range: |
TX: 1.6-27.5 MHz
RX: 0.1-30 MHz |
| Modes: |
SSB |
| RF Power Output: |
100 W (1.6 to 4 MHz)
150 W (4 to 27.5 MHz) |
| Channels: |
200 (20x channels 10x Groups) |
| Voltage: |
10.2-16.2 VDC (Negative-Grounded) |
| Current Drain: |
RX: 2 A
TX: Max 40 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
380 x 230 x 90 mm |
| Weight: |
7.4 Kg |
| Manufactured: |
xxxx-20xx |
| Other: |
|
| Related Documents: |
|
