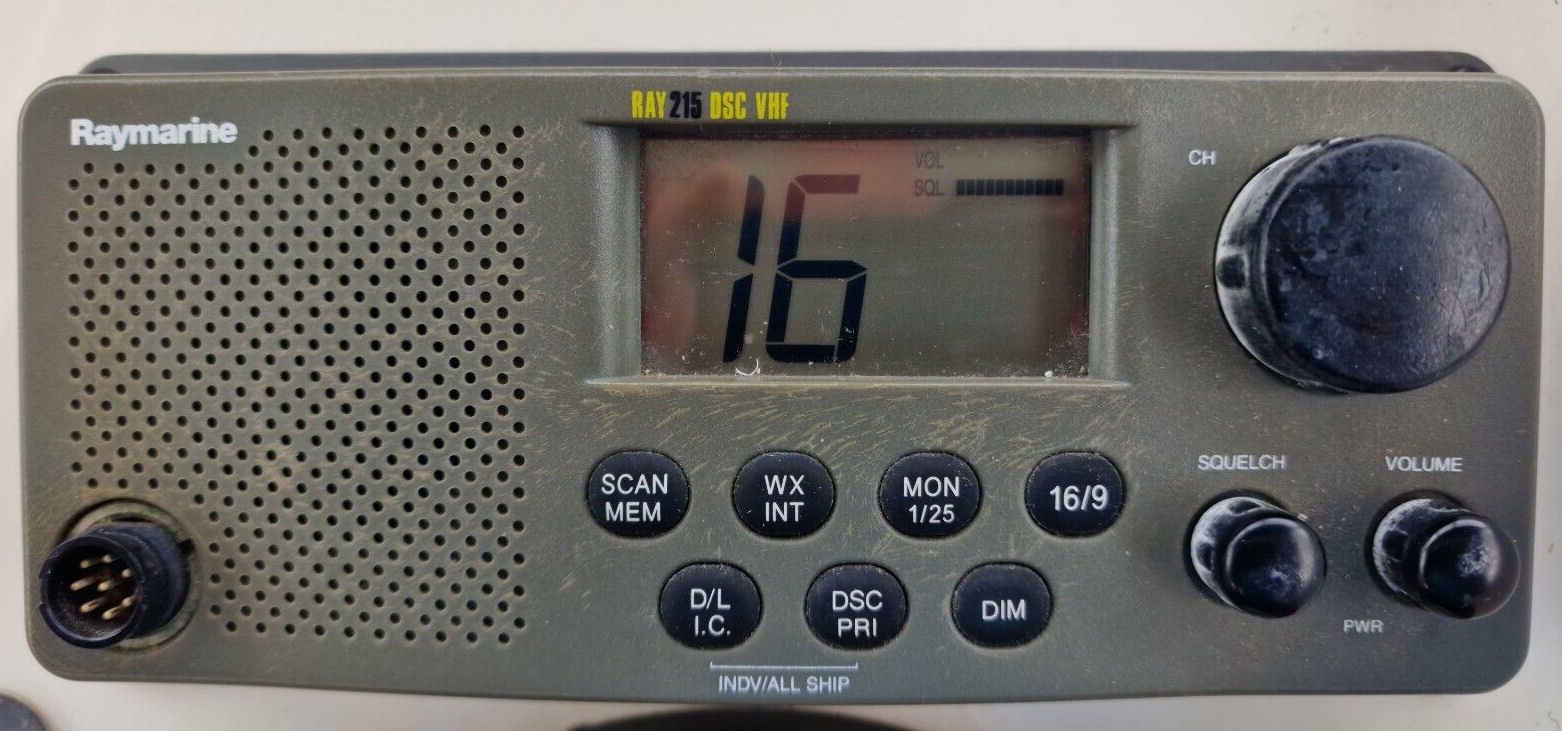

Raymarine RAY215
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
TX: 156.000-157.475 / 155.500-161.425 MHz(Private channels)
RX: 156.050-163.275 / 155.550-161.425 MHz(Private channels) |
| Modes: |
FM/DSC |
| channels: |
All available US, International and Canadian VHF marine bands |
| RF Power Output: |
25/1 W |
| Voltage: |
12 VDC |
| Current Drain: |
RX: ? A
TX: Max ? A |
| Aerial Input: |
50 ohms SO:259 |
| Dimensions (W*H*D): |
80 x 180 x 174 mm |
| Weight: |
1.59 Kg |
| Manufactured: |
Malaysia: 20xx-20xx |
| Other: |
|
| Related Documents: |
User Manual (2.17 MB) |
|
