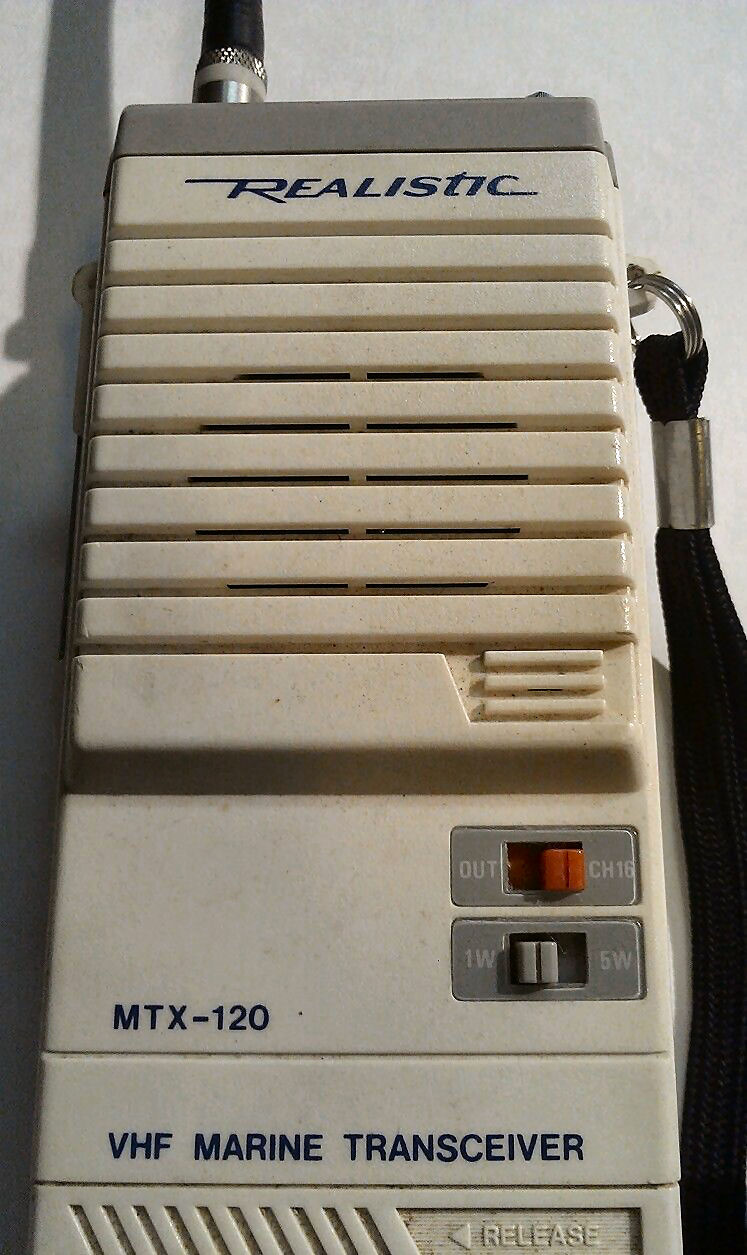

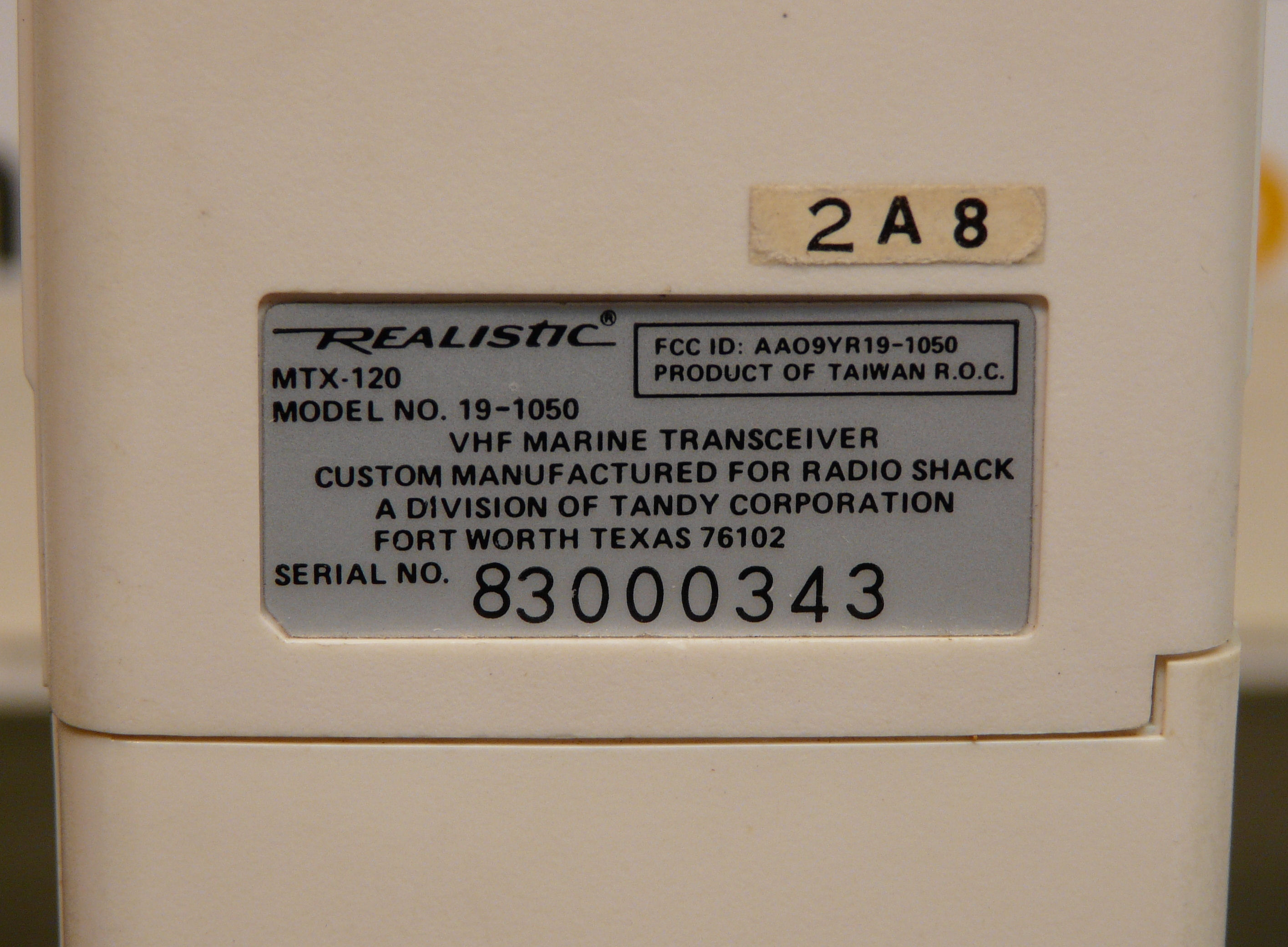

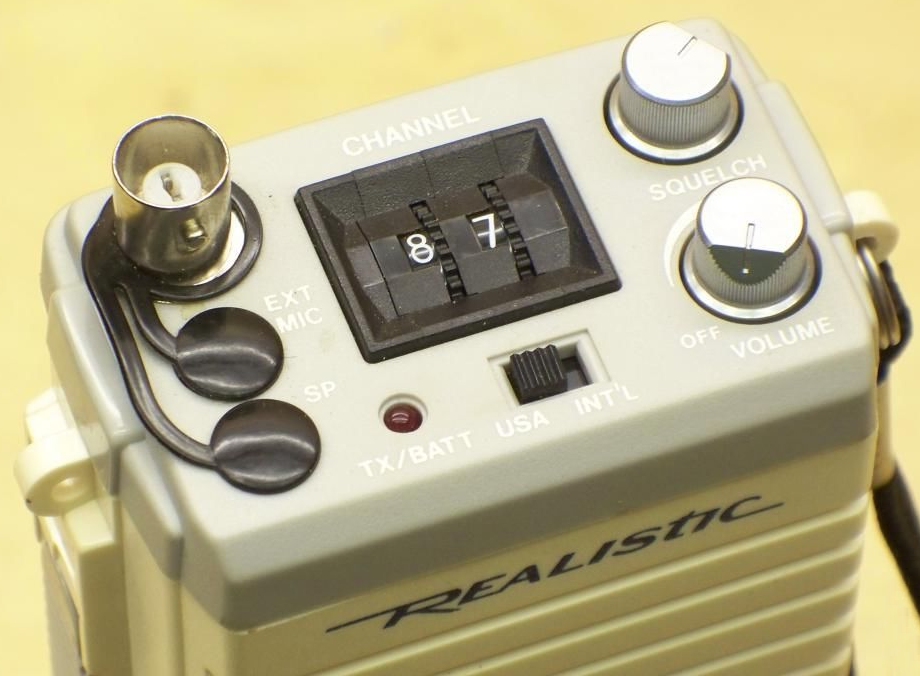

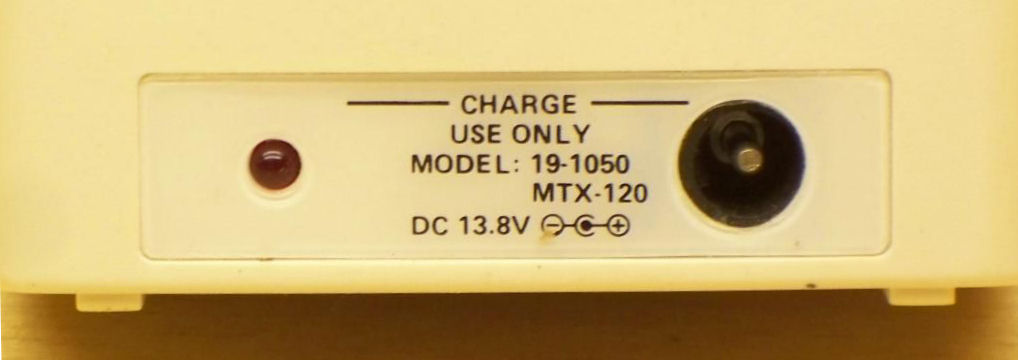

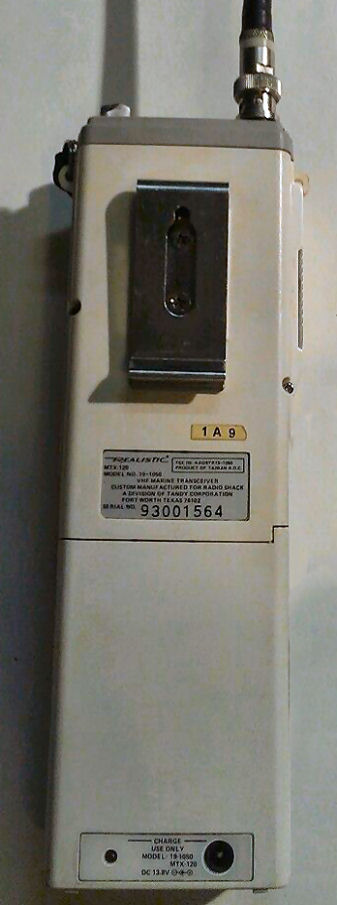

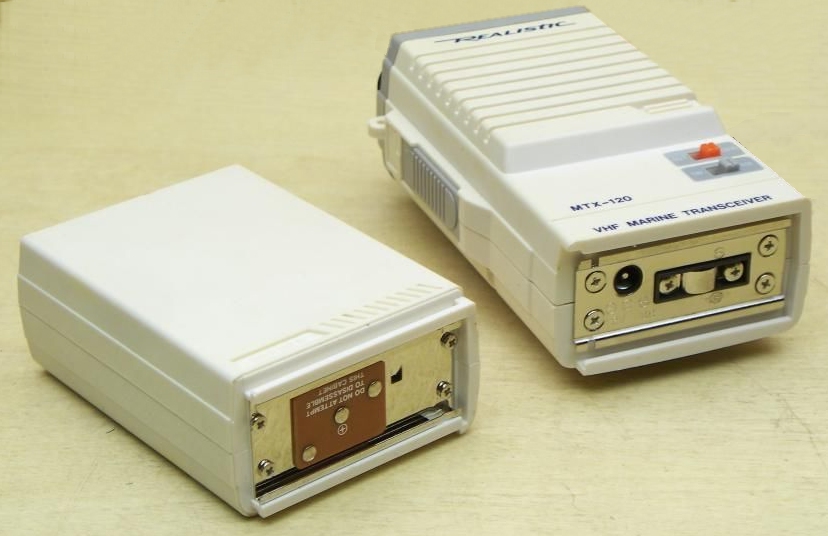

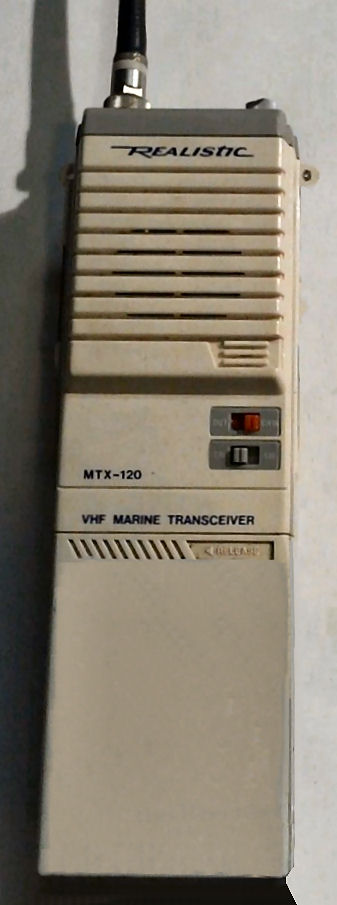

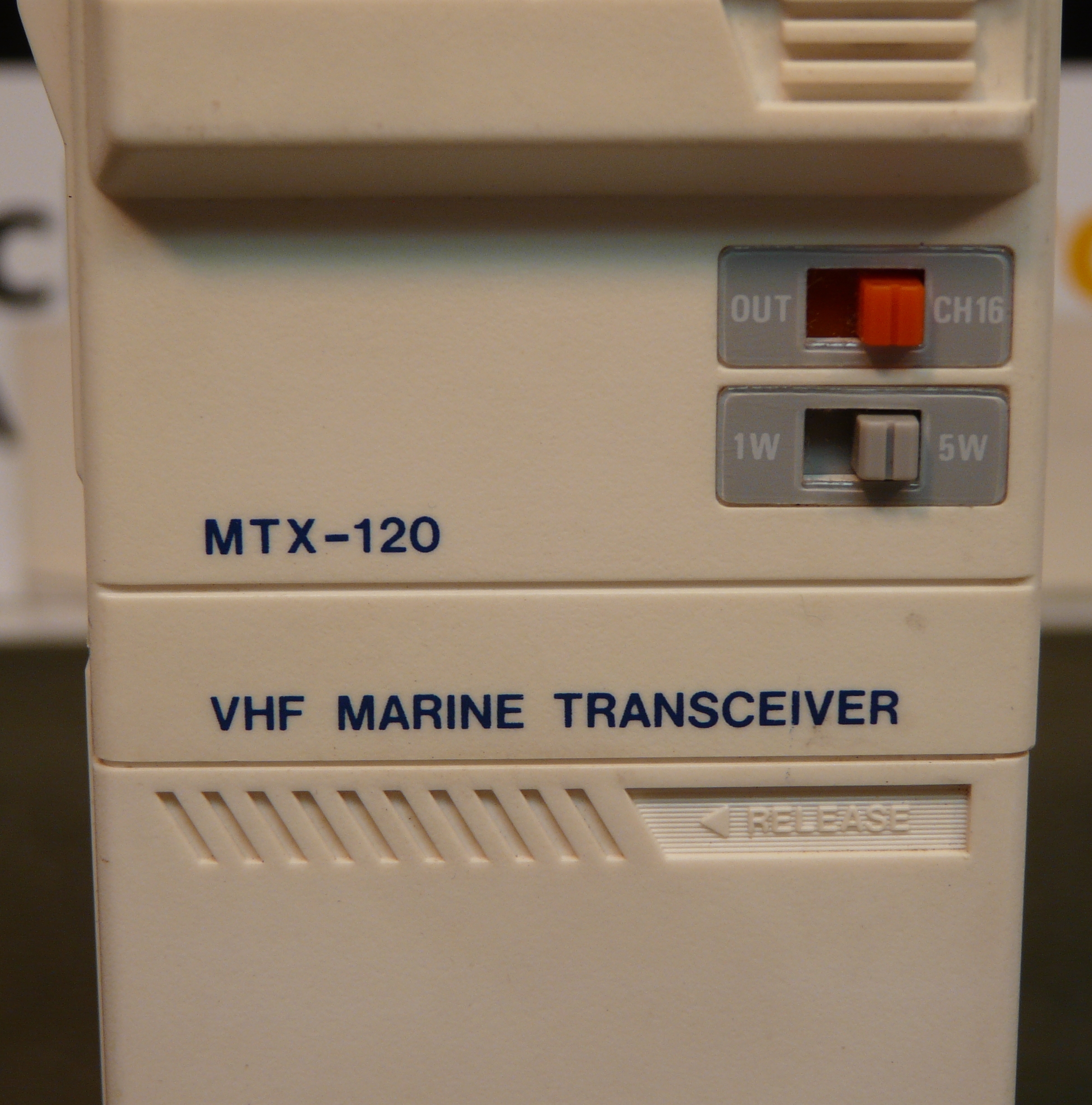

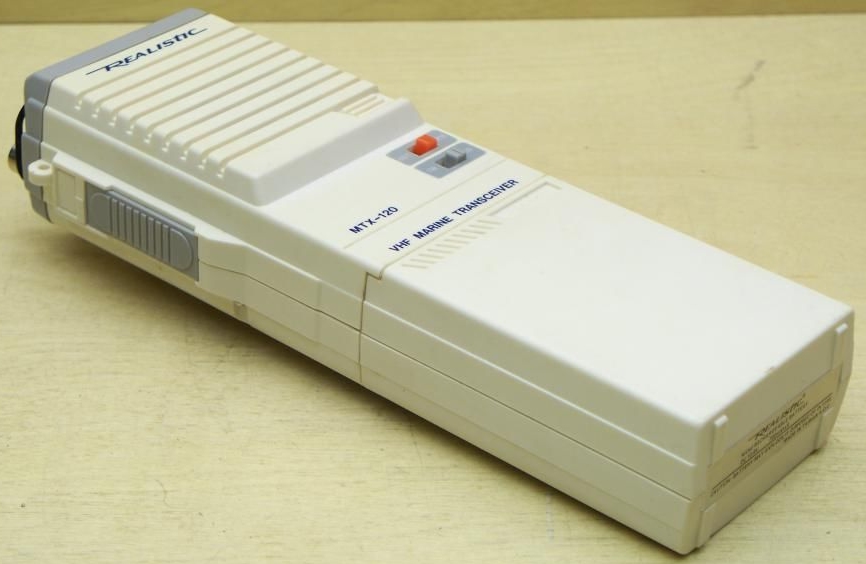

Realistic MTX-120 {USA Catalog Number: 19-1050}*

Type: Professional Marine Transceiver
Frequency Range: RX: 156.025-157.425 MHz
TX: 156.025-162.550 MHz
Modes: FM
Memories: RX: 90 (9 Weather Channels)
TX: 55
RF Power Output: 1W/5W
Voltage: 11 VDC (700mAH Battery)
Current Drain: RX: 40 mA
TX: Max 200 mA
Aerial Input: 50 ohms, BNC
Dimensions (W*H*D): 46 x 210 x 35 mm
Weight: 570g
Manufactured: Taiwan: 19xx-xxxx
Other: US & International Frequencies
Related Documents: Owner's Manual (6.2 MB)
