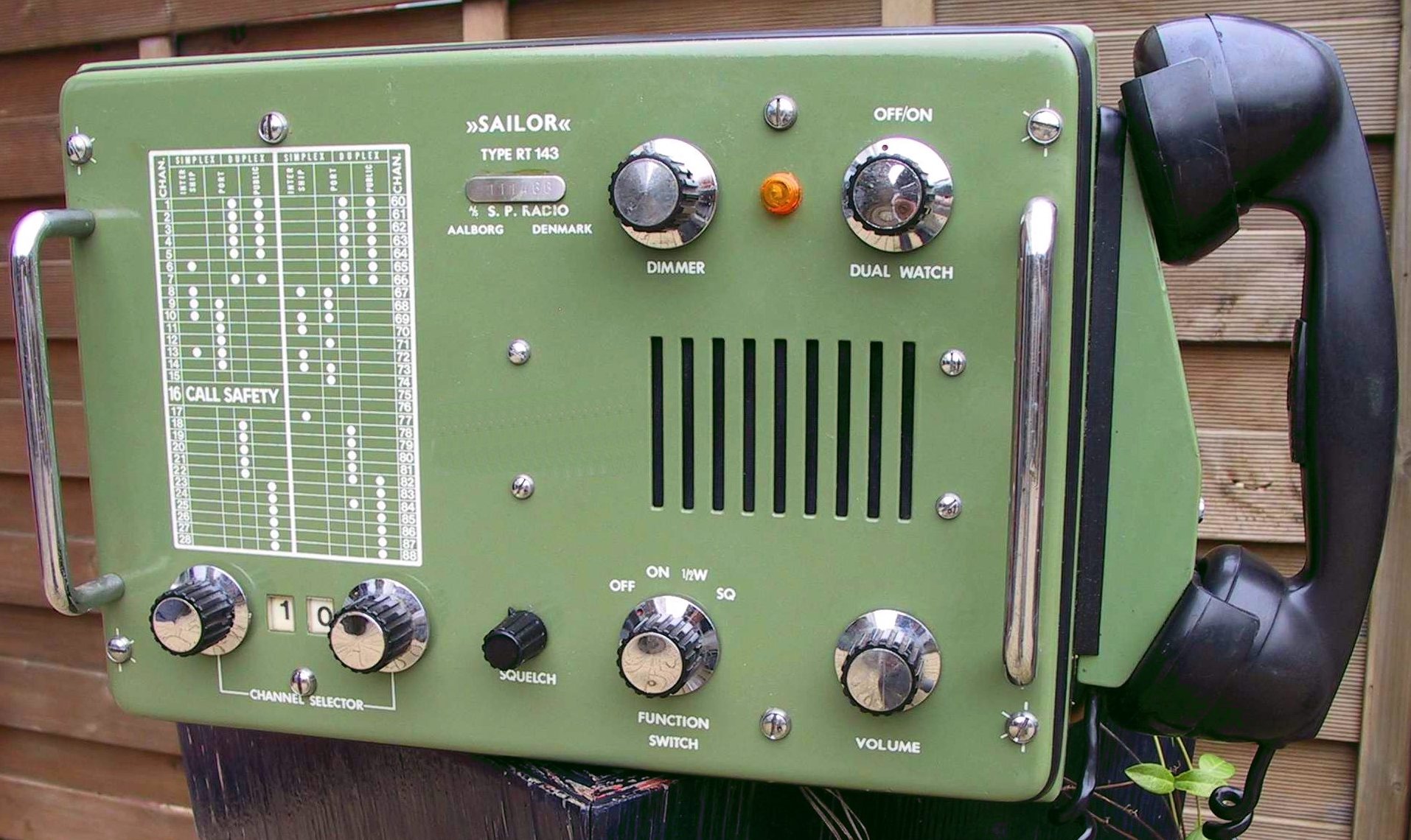

Sailor RT143
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
RX: 156.300-156.875 MHz (Simplex)
RX: 160.625-162.025 MHz (Duplex)
TX: 156.025-157.425 MHz |
| Modes: |
FM |
| RF Power Output: |
25 W |
| Channels: |
All International Maritime VHF channels |
| Private Channels: |
4 (Close to Int. Maritime Band) |
| Operation: |
Simplex and Duplex |
| Voltage: |
12 or 24 VDC |
| Current Drain: |
RX: 220 mA
TX: Max 4 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
320*220*195 |
| Weight: |
12 Kg |
| Manufactured: |
Denmark, 1973 |
| Other: |
|
| Related Documents: |
|
 |
