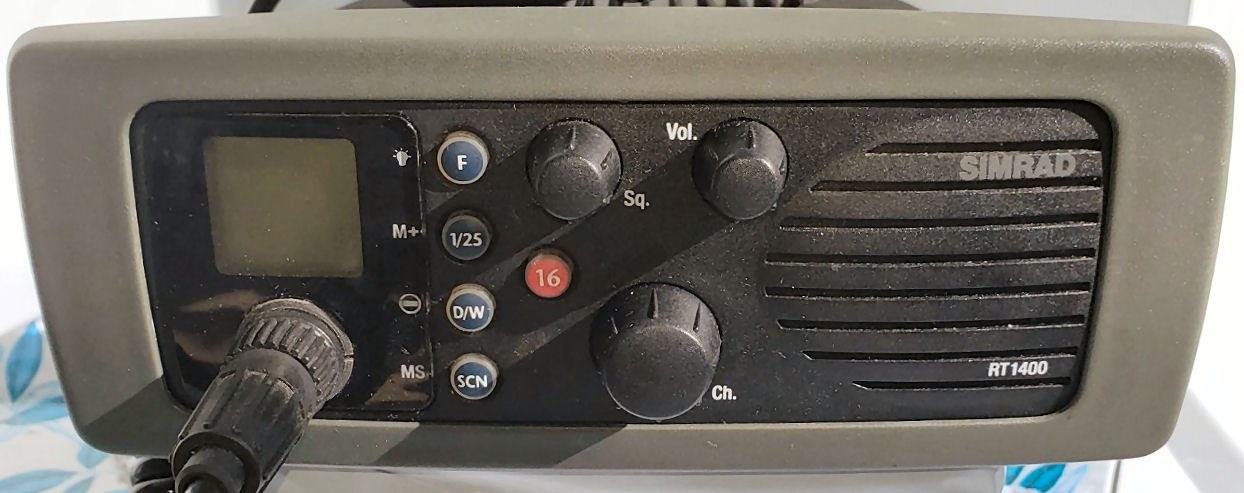

Simrad RT1400
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
55 international channels 1-28, 60-88 simplex & semi-duplex
UK : includes M (previously 37) and M2
USA : includes 0, 29, 89, 75, 76, Wx1-10 receive only. |
| Modes: |
FM |
| RF Power Output: |
Hi: 25 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12v DC (10.8v - 15.5v DC) |
| Current Drain: |
RX: 300mA (Full Volume, illumination on)
RX: 180mA (Fully Squelched, illumination off)
TX: 5.5A (25 watts)
TX: 1.3A (1 watt) |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
185 x 66 x 158 mm |
| Weight: |
?? Kg |
| Manufactured: |
200x-200x |
| Other: |
Waterproof Fixed VHF
DSC option. Built-in second RX. |
| Related Documents: |
User Manual (441 kb) |
 |
